15. REAR WHEEL/AXLE/SUSPENSION
15-7
Mongoose/KXR 250

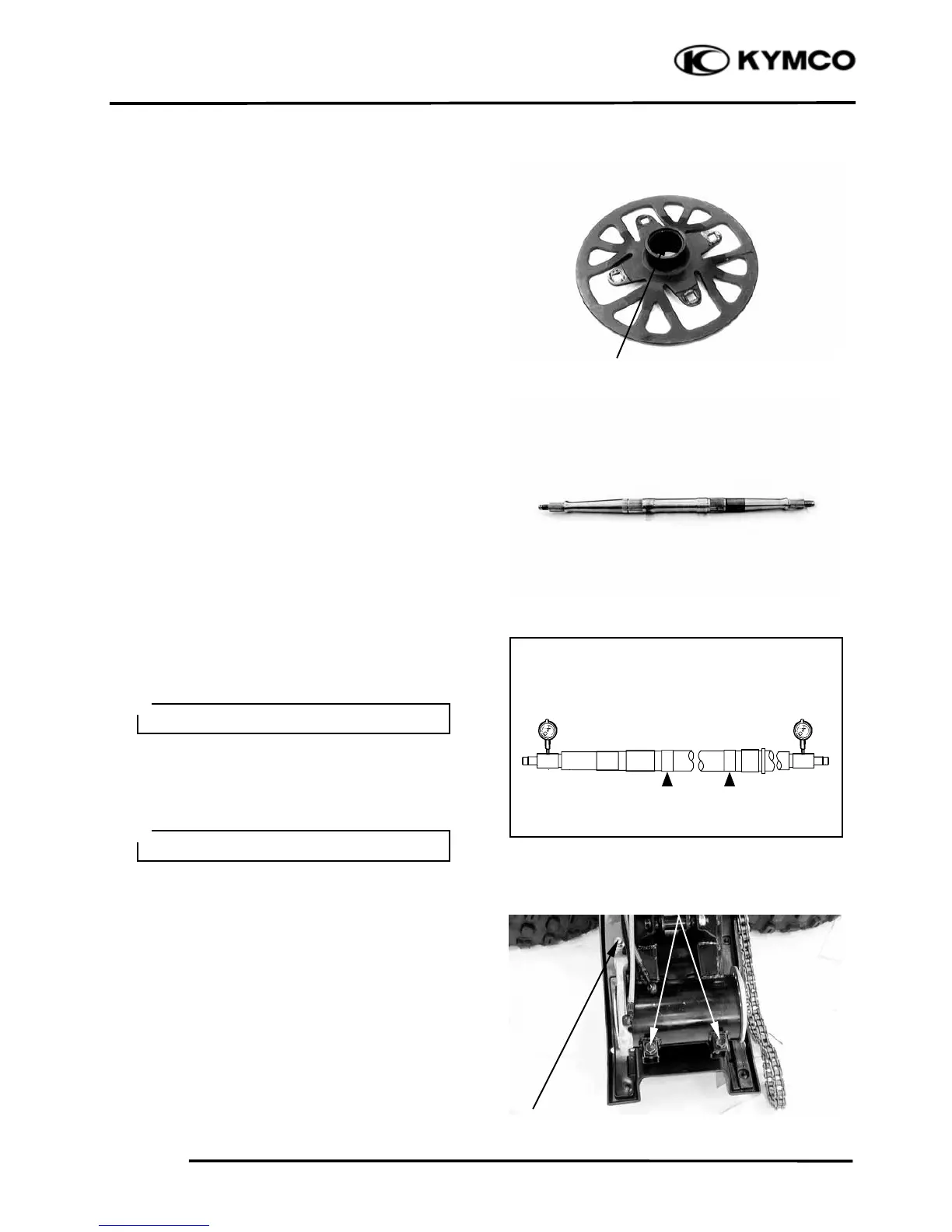

Inspect the driven sprocket holder splines.
Wear/damage → Replace.
Inspect the rear axle.
Scratched (excessively)/damage → Replace.
Inspect the splines and threads of the rear
axle
Wear/damage → Replace.
Measure the rear axle run out.
Service limit: less than 1.5mm
Out of specification → Replace.
REAR AXLE ASSEMBLY
Reverse the “REAR AXLE
DISASSEMBLY” procedures.
Remove the bolt at the rear caliper holder.
Remove the two bolts attaching the rear
axle hub at the rear fork.
Do not attempt to straighten a bent axle.
＊
Apply grease onto the rear axle splines.
＊
Splines
Bol
t
Bolts
