KYMCO Mongoose/KXR 250 User Manual

15. REAR WHEEL/AXLE/SUSPENSION
15-17
Mongoose/KXR 250

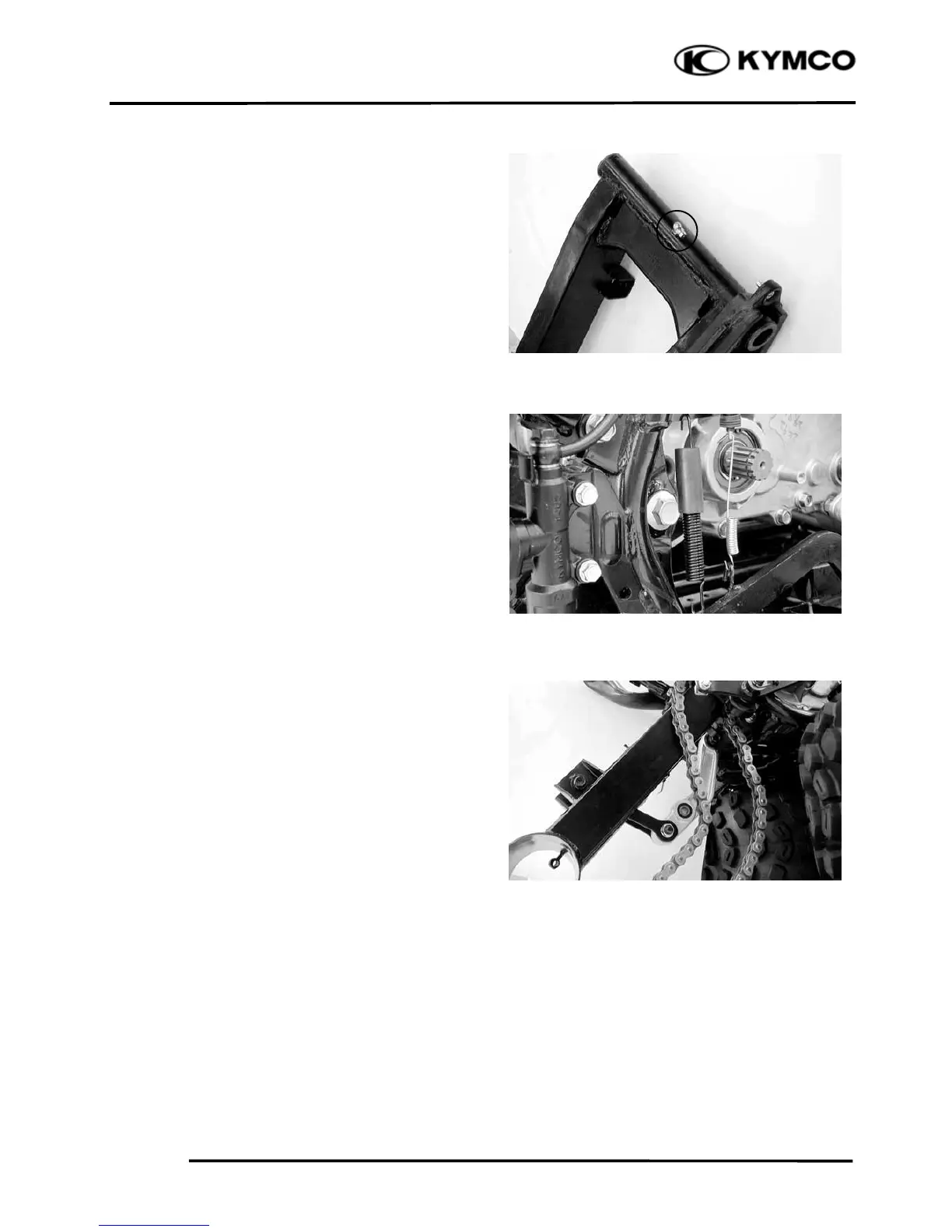

INSTALLATION
Reverse the “REAR FORK/SWIM
ARM/SHOCK ABSORBER
REMOVAL AND INSPECTION”
procedure.
Apply grease onto the collar, bush, pivot
shaft and thrust cover.
Install the rear fork and tightening the nut
and pivot shaft.
Torque: 6.0～8.0kgf-m
Install the rear swing arm and tightening the
bolts.
Torque: 3.5～4.5kgf-m
Install the shock absorber and tightening the
bolts.
Torque: 3.5～4.5kgf-m
Install the rear hub and rear wheels.
Refer to the “REAR WHEEL
INSTALLATION” section.
Adjust the drive chain slack.
Refer to the “DRIVE CHAIN SLACK
ADJUSTMENT” section in the CHAPTER
3.
Drive chain slack: 30 ~ 40mm
