19. BULBS REMOVAL/INSTRUMENT/HORN
19-4
Mongoose/KXR 250

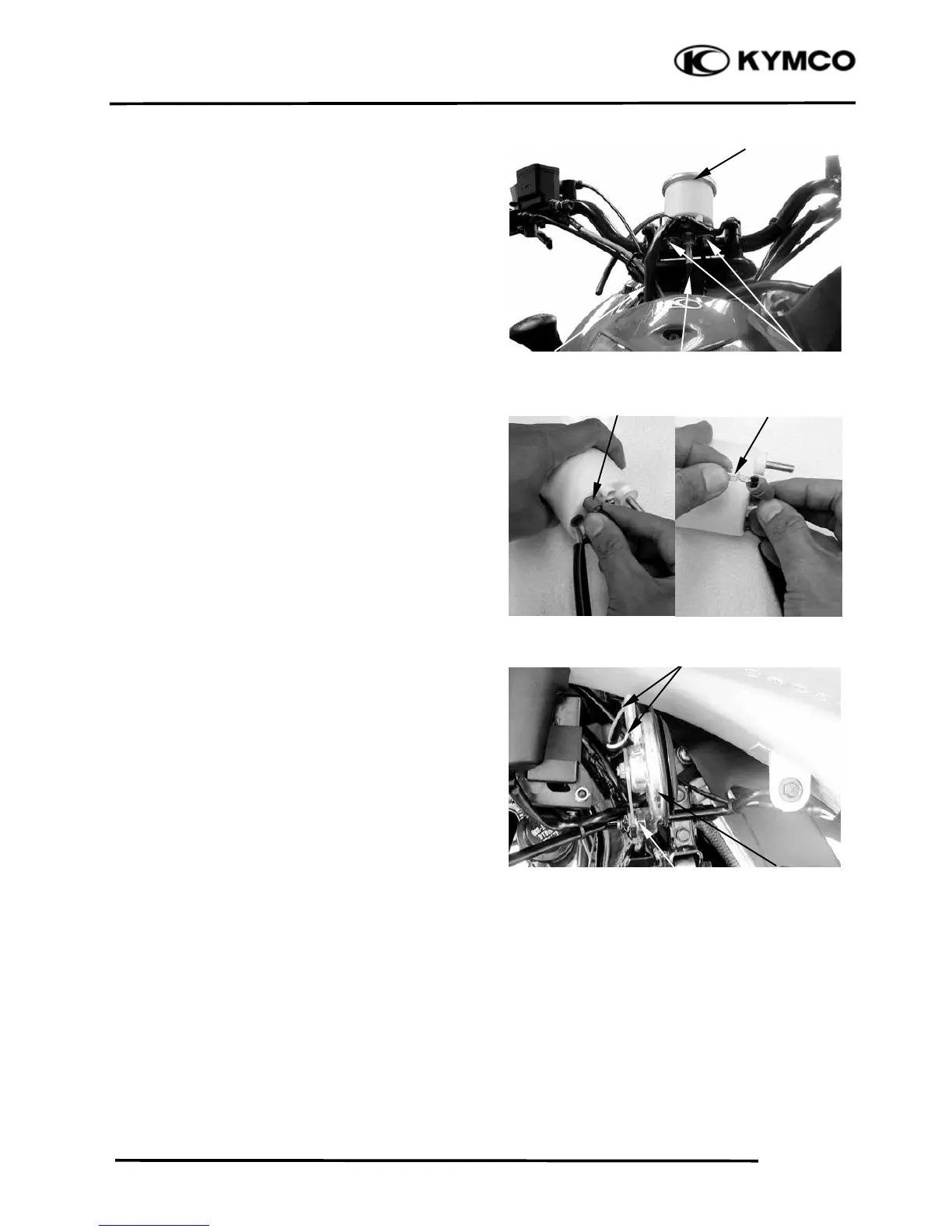

INSTRUMENT (ON ROAD)
REMOVAL
Remove the handlebar cover. (See page 2-4)
Disconnect the meter wire coupler and
speedometer cable.
Remove the two nuts and then remove the
instrument.
Pull the bulb socket out and then remove the
instrument bulb.
Install the instrument in the reverse order of
removal.
HORN (ON ROAD)
REMOVAL
Disconnect the horn wire leads.
Remove the bolt and remove horn.
INSTALLATION
The installation sequence is the reverse of
removal.
Bulb Socket Bulb
Instrument
Meter Wire Speedometer Cable
N
uts
HornBolt
Horn Wire Leads
