KYMCO Mongoose/KXR 250

4. LUBRICATION SYSTEM
4-4
Mongoose/KXR 250
Screw
Pump Body

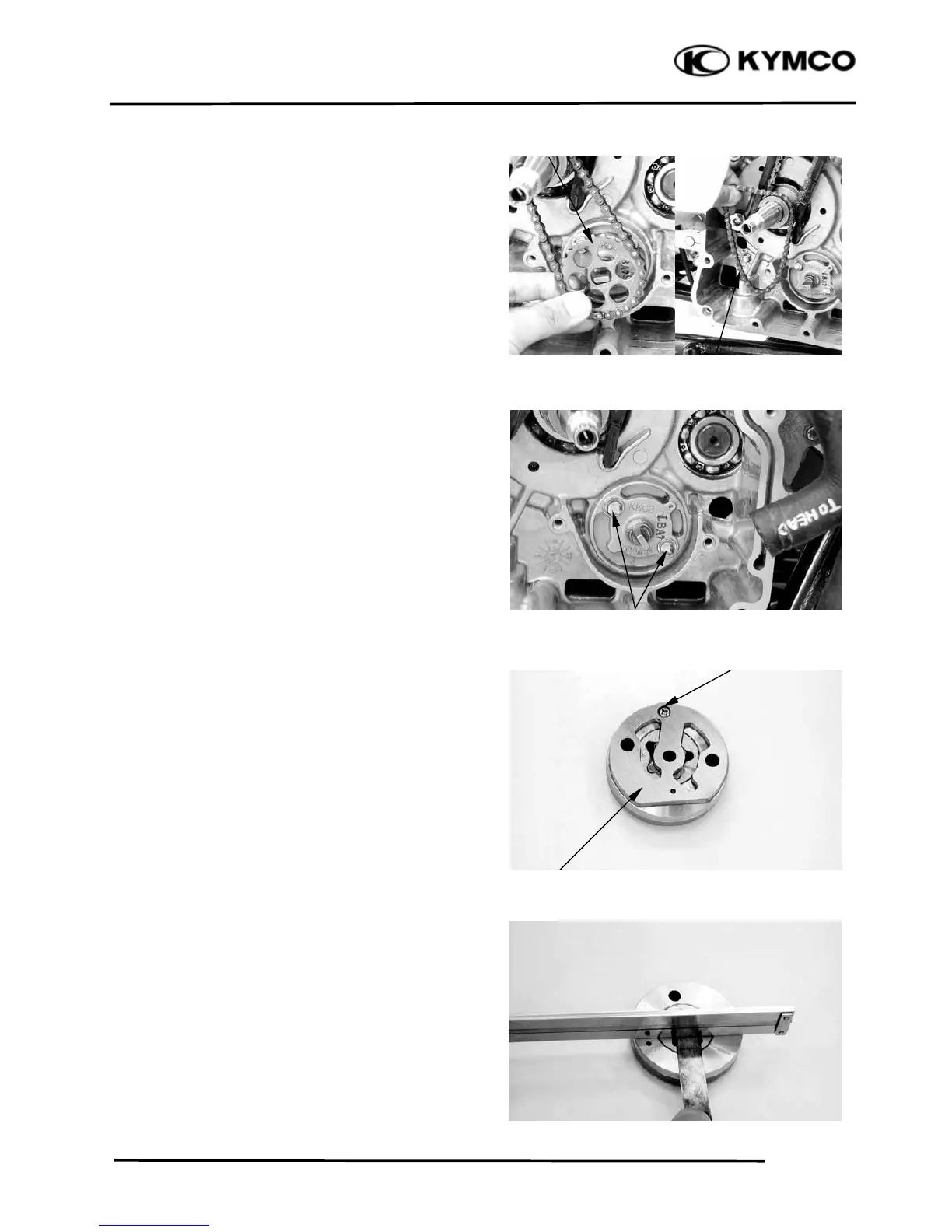

Remove the two oil pump bolts for remove
the oil pump.
OIL PUMP DISASSEMBLY
Remove the screw and disassemble the oil
pump.
INSPECTION
Measure the rotor end-to-pump body
clearance.
Service Limit: 0.12mm
Oil Pump Driven Sprocke
t
Oil Pump Drive Chain
Oil Pump Bolts
