5. FUEL SYSTEM
5-5
Mongoose/KXR 250

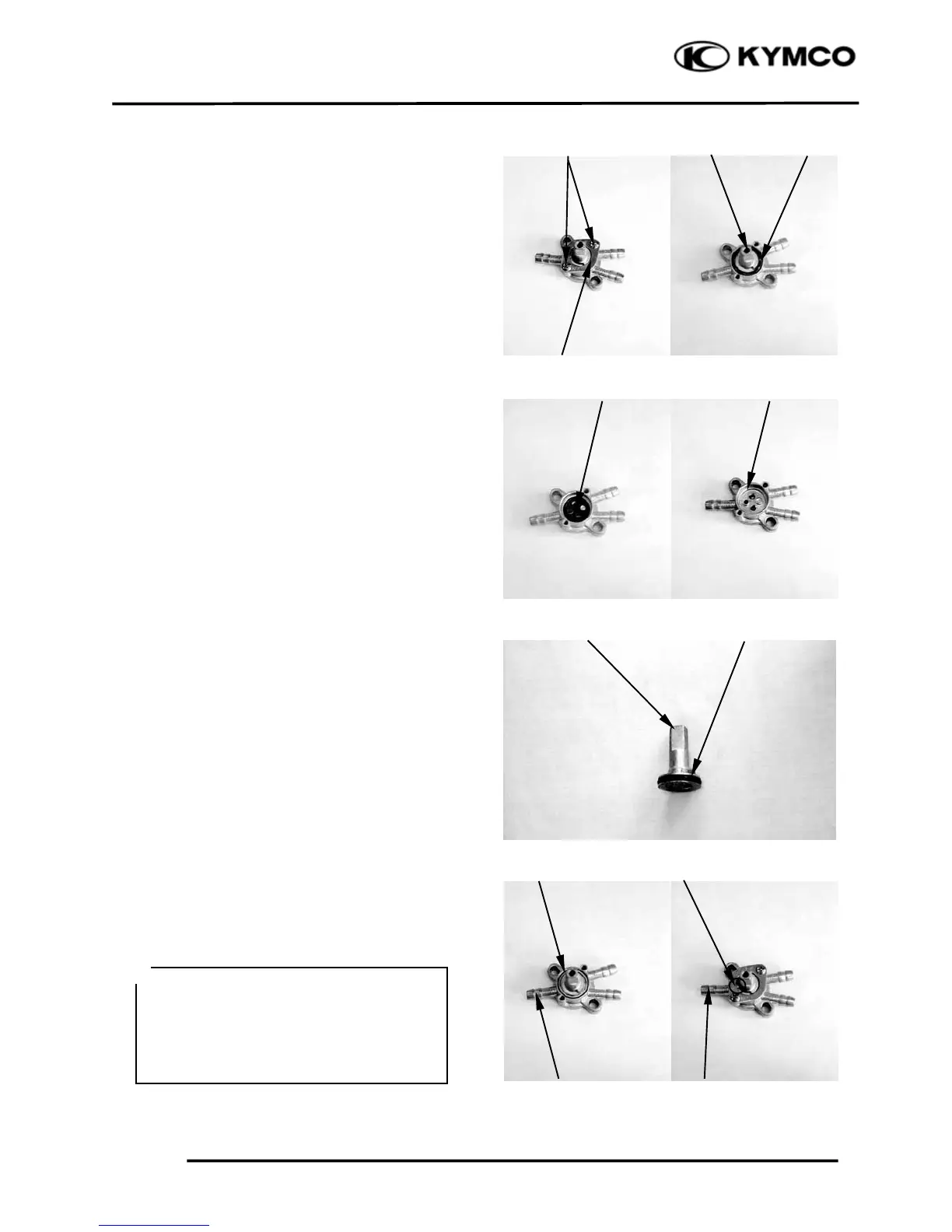

DISASSEMBLY
Remove the two screws on the retaining ring
and then remove retaining ring.
Remove the washer and control shaft.
Remove the rubber gasket from the fuel
valve body.
INSPECTION
Inspect the fuel valve body for dirt and clog.
Clean if necessary.
Replace the rubber gasket with new ones if
they are damaged or deteriorated.
Replace the O-rings with new ones if they
are damaged or deteriorated.
ASSEMBLY
Reverse the “DISASSEMBLY” procedures.
Install rubber gasket, control shaft, washer
and retaining ring.
Fuel Valve Body
Control Shaf
t
Rubber Gaske
t
Retaining Ring
Washe
r
Screws
Control Shaf
t
O-ring
• Aligning the tab on the control shaft
with the outlet duct in the fuel valve
body.
• Aligning the tab on the retaining ring
with the outlet duct in the fuel valve
body.
＊
Tab
Outlet Duc
t
Outlet Duc
t
Tab
