7. CYLINDER HEAD/VALVES
7-5
Mongoose/KXR 250

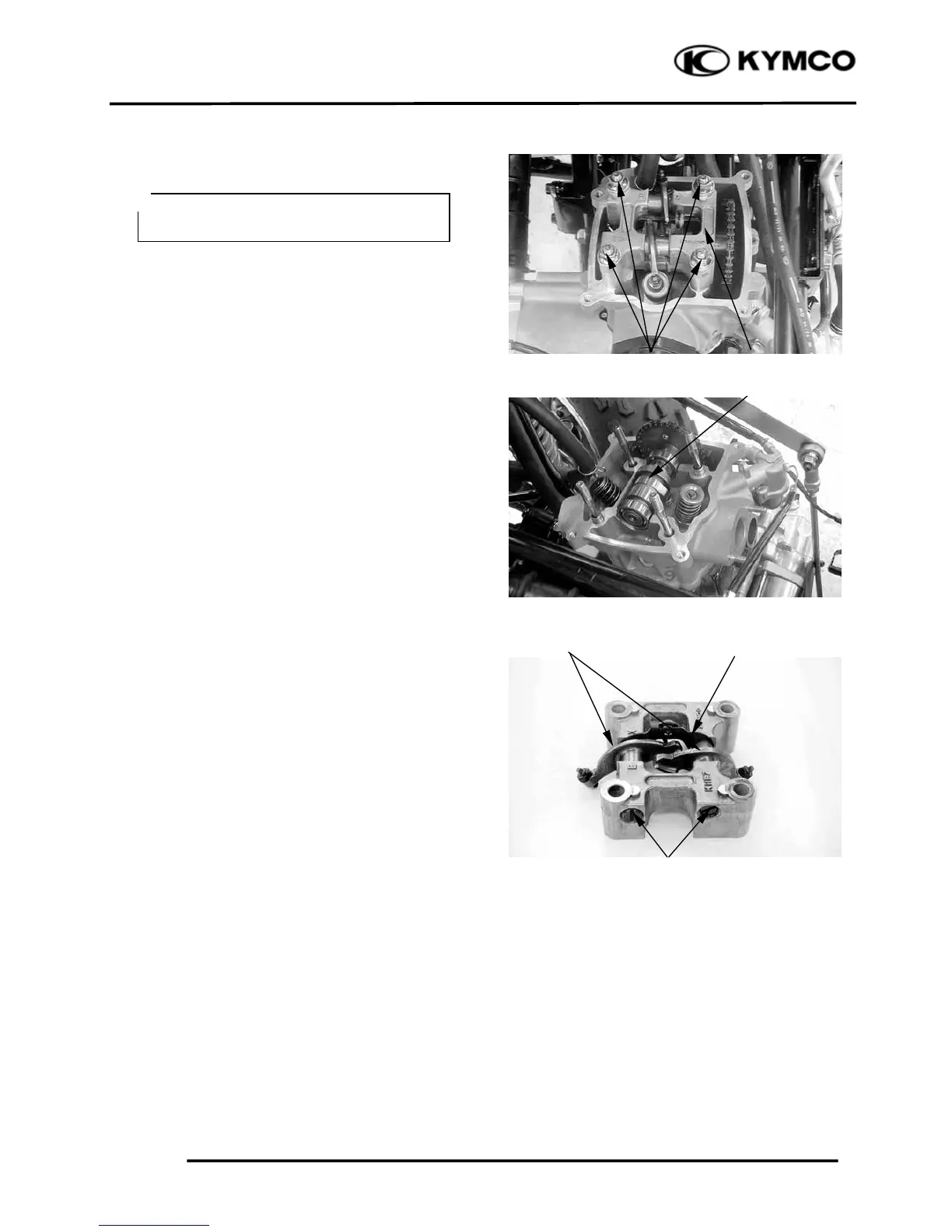

Remove the four camshaft holder nuts and
washers.
Remove the camshaft holder and dowel
pins.
Remove the camshaft gear from the cam
chain and remove the camshaft.
CAMSHAFT HOLDER DISASSEMBLY
Take out the valve rocker arm shafts.
Remove the valve rocker arms, arm shafts
and stop plate.
Diagonally loosen the cylinder head nuts
in 2 or 3 times.
＊
N
u
t
s and Washers
Camshaft Holde
r
Camshaf
t
Stop Plate
Rocker Ar
m
s
Rocker Arm Shaf
t
s
