Kyocera Ecosys P2235dw

2RV/2RW/2RX/2RY/3RA-1
4-24

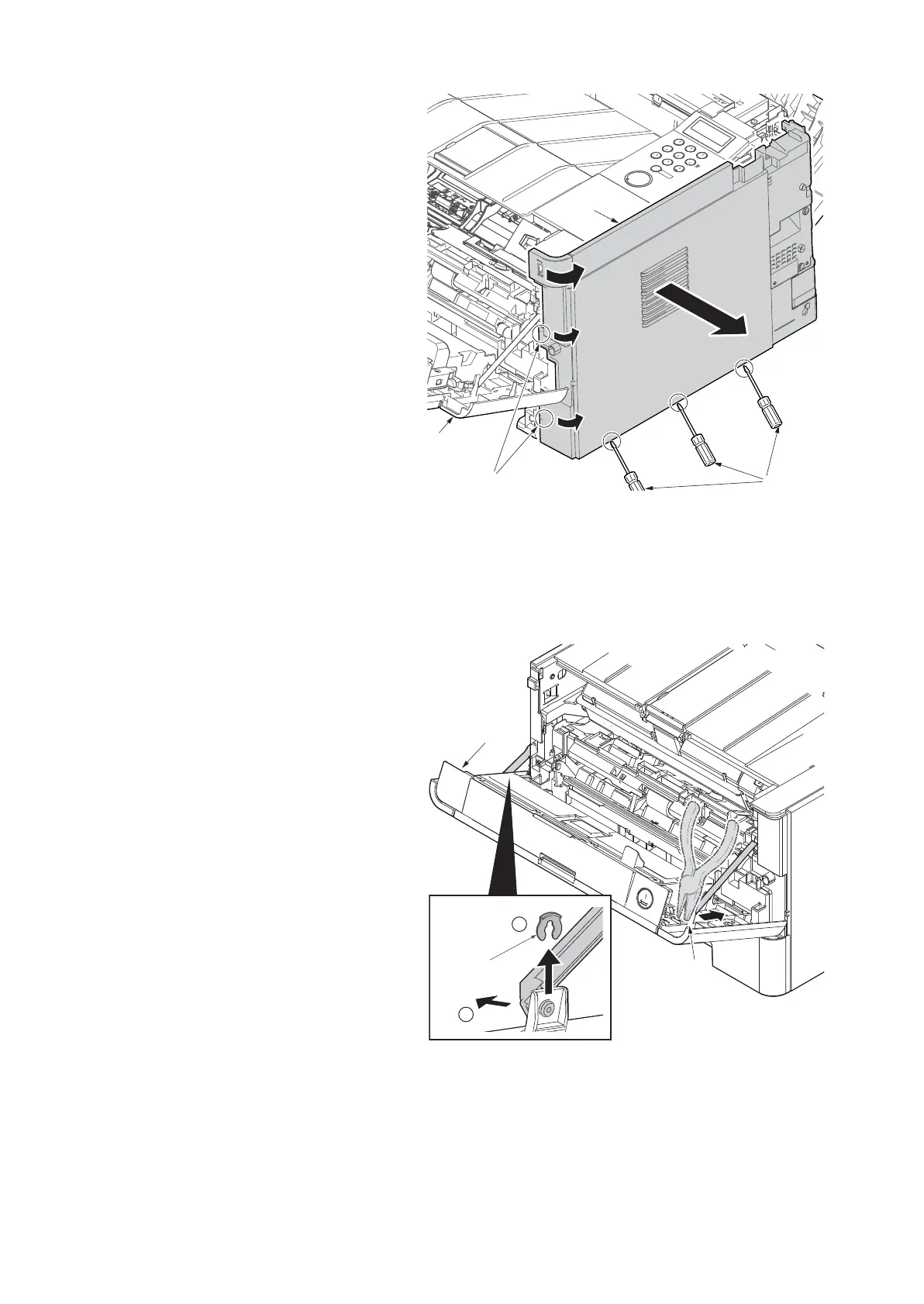

3. Release three hooks by using a flat-
head screwdriver (d).
4. Twist two hooks (c) at the front side of
the right cover (b) to release them and
detach the right cover (b).
Figure 4-37
(1-5)Detaching and reattaching the front cover
Procedures
1. Open the front cover (a) and detach the
strap by using pliers.
2. Remove the stop ring (c).
Figure 4-38
a
c
b
d
c
2
1
a
b
