Kyocera Ecosys P2235dw

2RV/2RW/2RX/2RY/3RA
4-17
(5) Fuser section
(5-1)Detaching and reattaching the fuser unit
Procedures

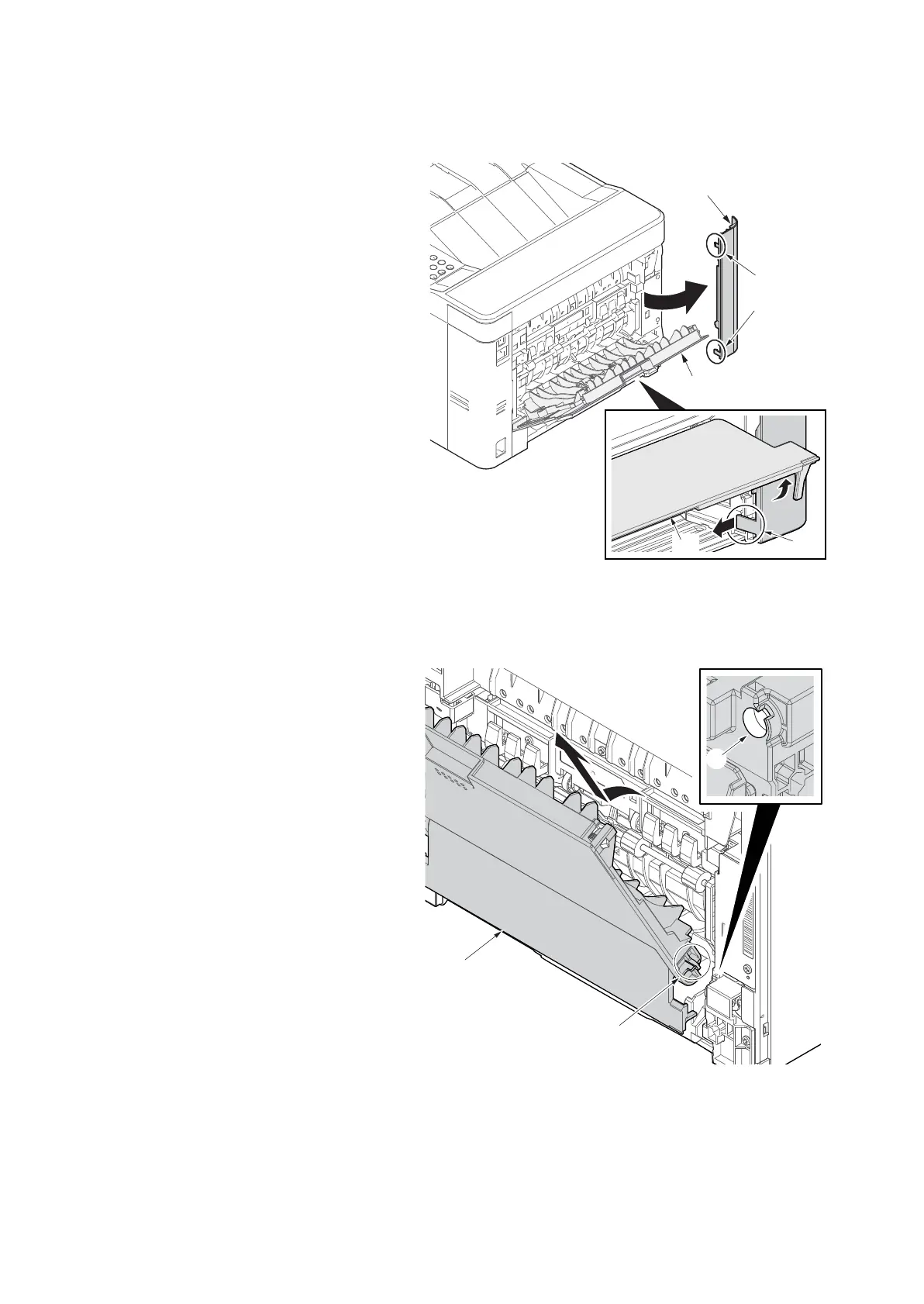

1. Slightly pull out the cassette
2. Open the rear cover (a).
3. Open the cassette cover (c) and
release the hook (d) of the left rear
cover (b) in the direction of the arrow.
4. Twist the rear left cover (b) to release
the hook (e) and detach it.
Attention:
The direction of hook (d) or (e) is reverse. Pay
attention to the damage when detaching.
Figure 4-24
5. Open the rear cover (a) to align it to the
position of the shaft (b) and detach it
from the fulcrum (c) in the direction of
the arrow.
Figure 4-25
a
b
c
d
d
e
b
a
c
