Kyocera Ecosys P2235dw

2RV/2RW/2RX/2RY/3RA
4-16

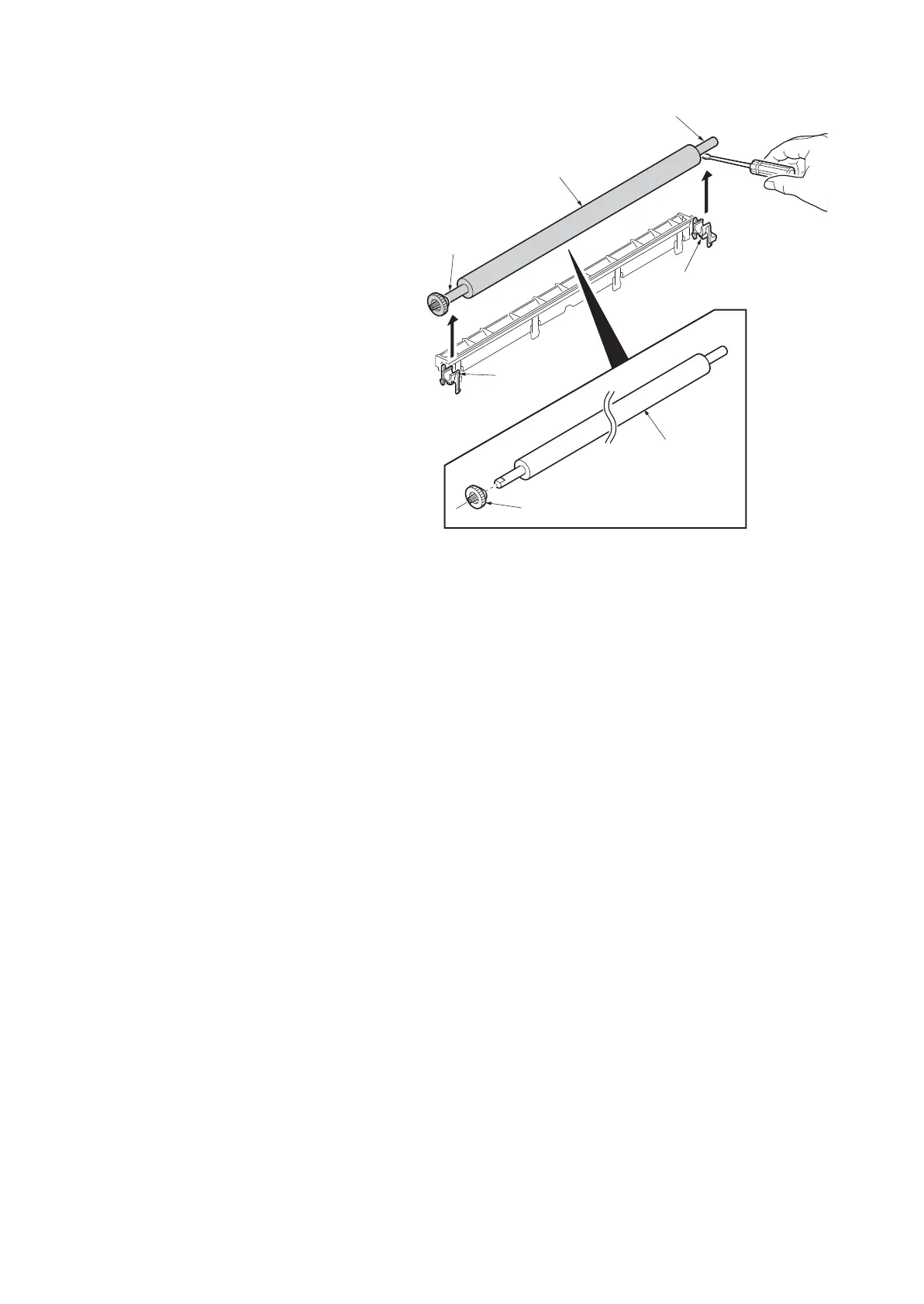

7. Remove the shaft (b) of transfer roller
(a) from two transfer bushings (c).
8. Remove the gear Z17 (d) from the
transfer roller (a).
9. Check or replace the transfer roller (a),
and then reattach the parts which are
detached in the original position.
Figure 4-23
a
a
c
c
b
b
d
