Kyocera Ecosys P2235dw

2RV/2RW/2RX/2RY/3RA
3-17
3-3 Drive system

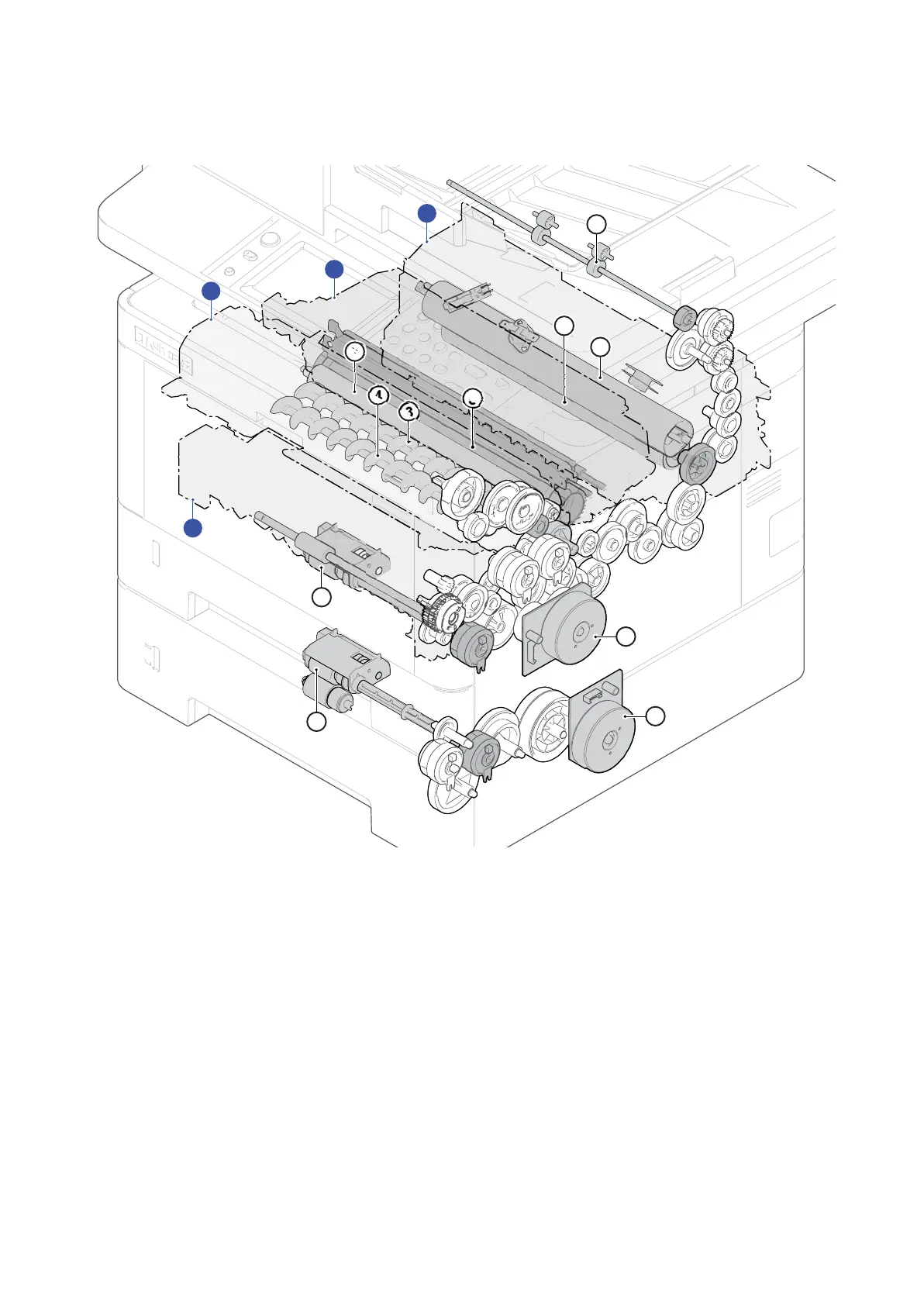

(1) Drive system for the paper conveying
Figure 3-11
2
D
C
B
A
1
10
5
7
6
3
4
8
9
11
A. Primary paper feed
1. Paper feed roller
B. Developer unit
2. Developer roller
3. Screw roller a
4. Screw roller b
C. Drum unit
5. Drum
D. Fuser unit
6. Press roller
7. Belt roller
8. Eject roller
9. Main motor
10. PF paper feed roller
11. PF conveying motor
