(8) Duplex conveying section
The duplex conveying section consists of the paper conveying path to forward the paper from the eject and
feedshift section in the duplex print to the paper conveying section.
Components parts
1. Lower eject roller
2. Feedshift pulley
3. Actuator
(Eject sensor)
4. DU conveying roller A
5. DU conveying pulley A
6. DU conveying roller B
7. DU conveying upper guide
8. DU conveying lower guide
9. DU conveying lever
10. Rear cover

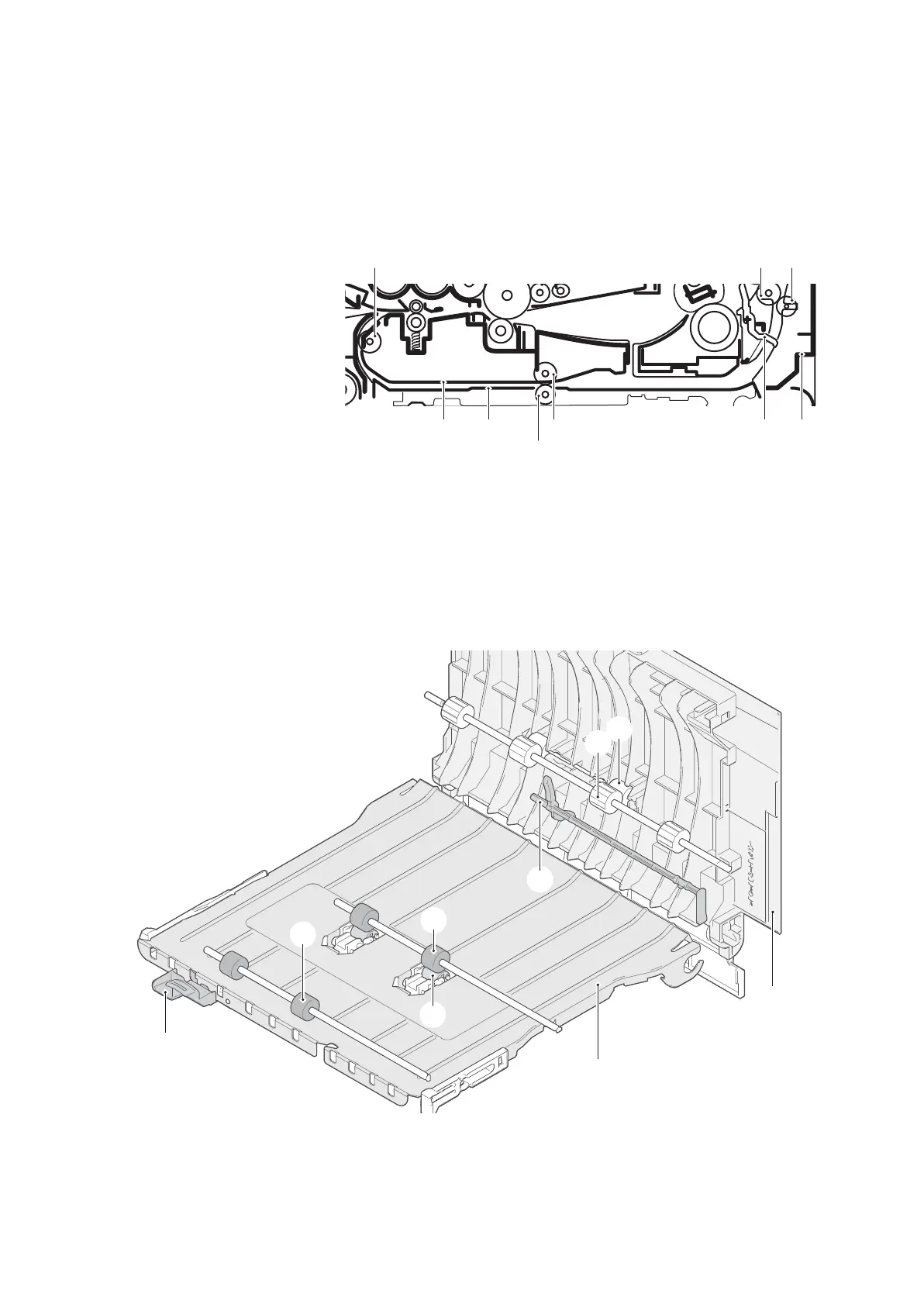

Figure 3-40
Figure 3-41
6 21
5
487 3 10
4
2
6
3
8
9
5
10
1
