2RV/2RW/2RX/2RY/3RA
4-13

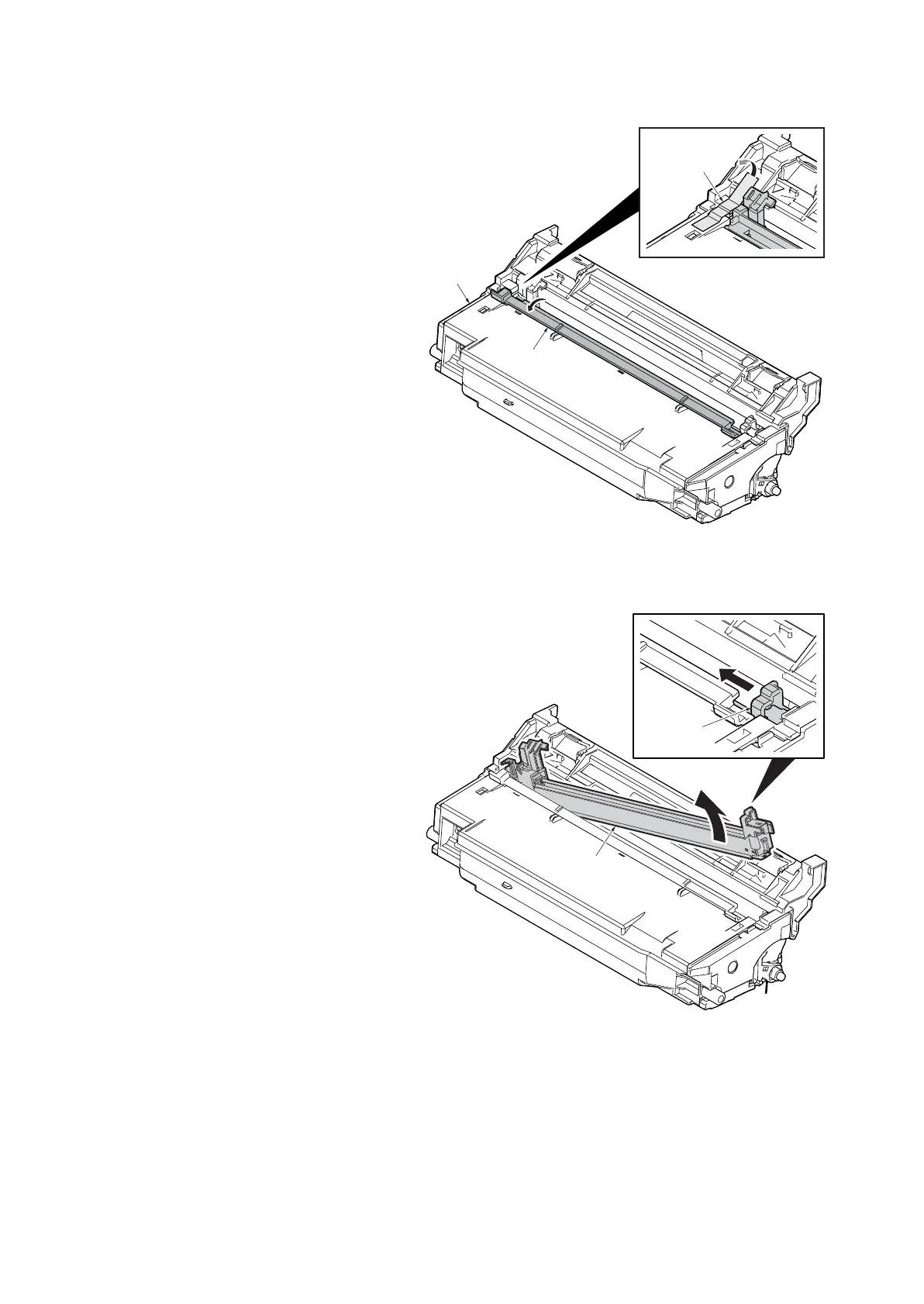

(3-2)Detaching and reattaching the main charger unit
Procedures
1. Remove the tape (b) from the drum unit
(a).
2. Open the eraser cover (c)
Figure 4-17
3. Push the edge (a) of the main charger
unit and slide it.
4. Lift up the main charger unit (b) and
detach it.
5. Check or replace the main charger unit
(b), and then reattach the parts which
are detached in the original position.
Figure 4-18
c
b
a
b
a
To Next Page
