2RV/2RW/2RX/2RY/3RA
8-11

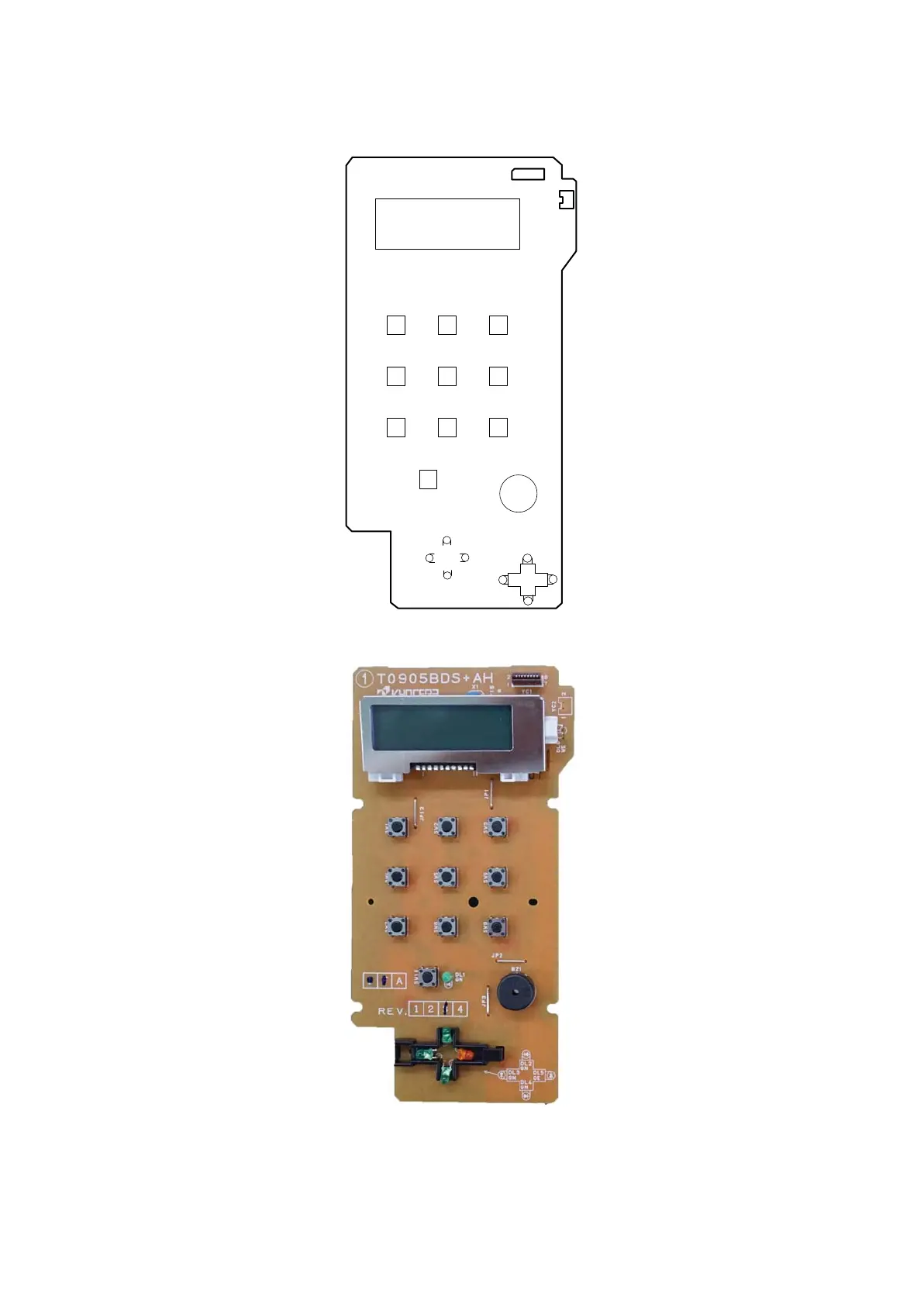

(4) Operation panel PWB (LCD)
Connector position
Figure 8-7
PWB photograph
Figure 8-8
YC1
1
8
YC2
1
2
LCD1
