15. Release three hooks by using a flat-
head screwdriver (d).
16. Twist two hooks (c) at the front side of
the right cover (b) to release them and
detach the right cover (b).

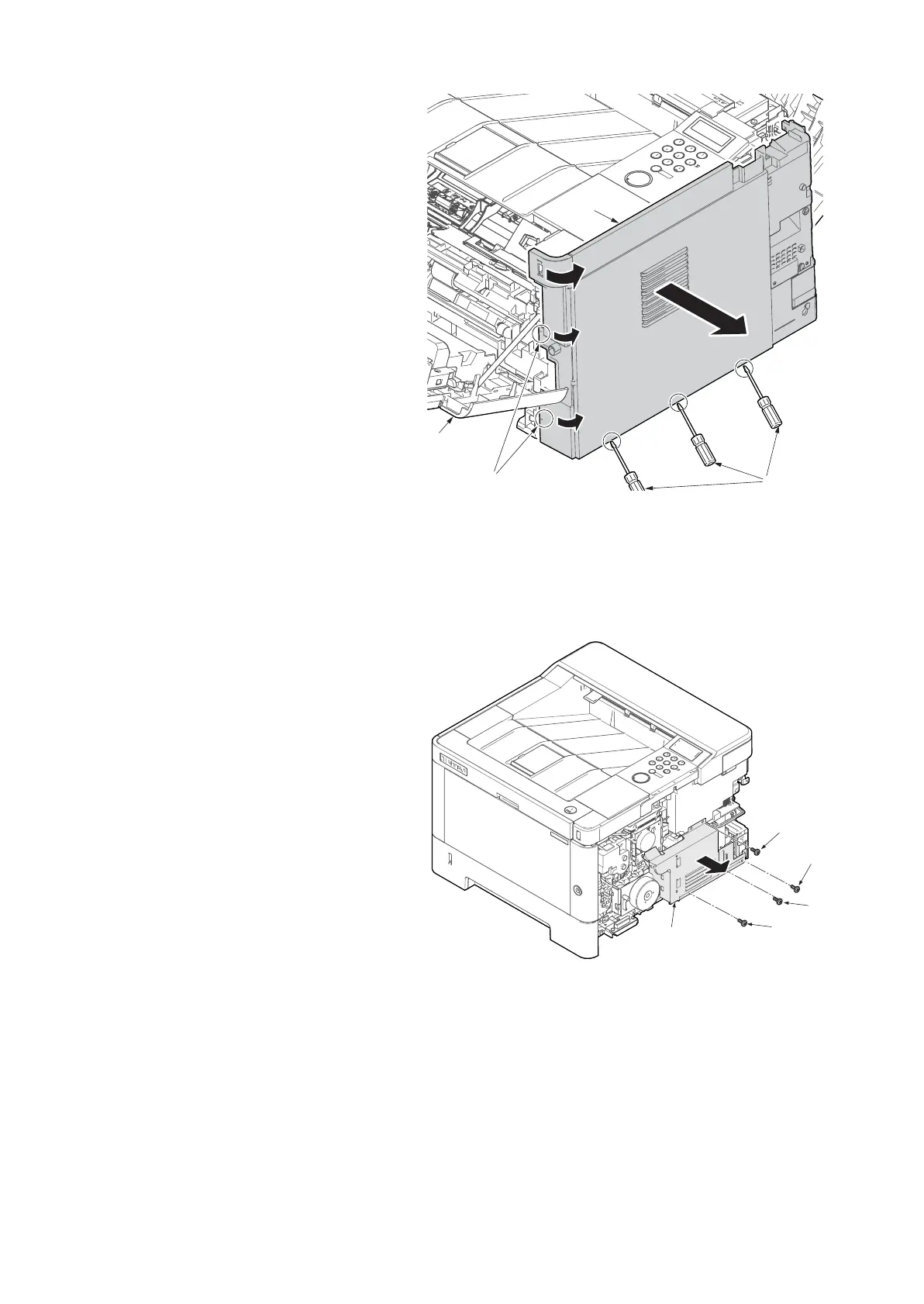

Figure 4-59
17. Remove three screws (M3×8Stight)(a)
and the screw (M3×8Ptight)(b) securing
the low voltage power source PWB
cover (c).
18. Remove the low voltage power source
PWB cover (c).
Attention: When detaching the low voltage
power source PWB (c), the lower voltage
power source PWB protection plate may
fall.
