13. Tilt the DU assembly (a) and detach two
stoppers(b) while pushing them inside.
14. Lift down the DU assembly(a) to the
bottom and pull it toward you to detach
it.

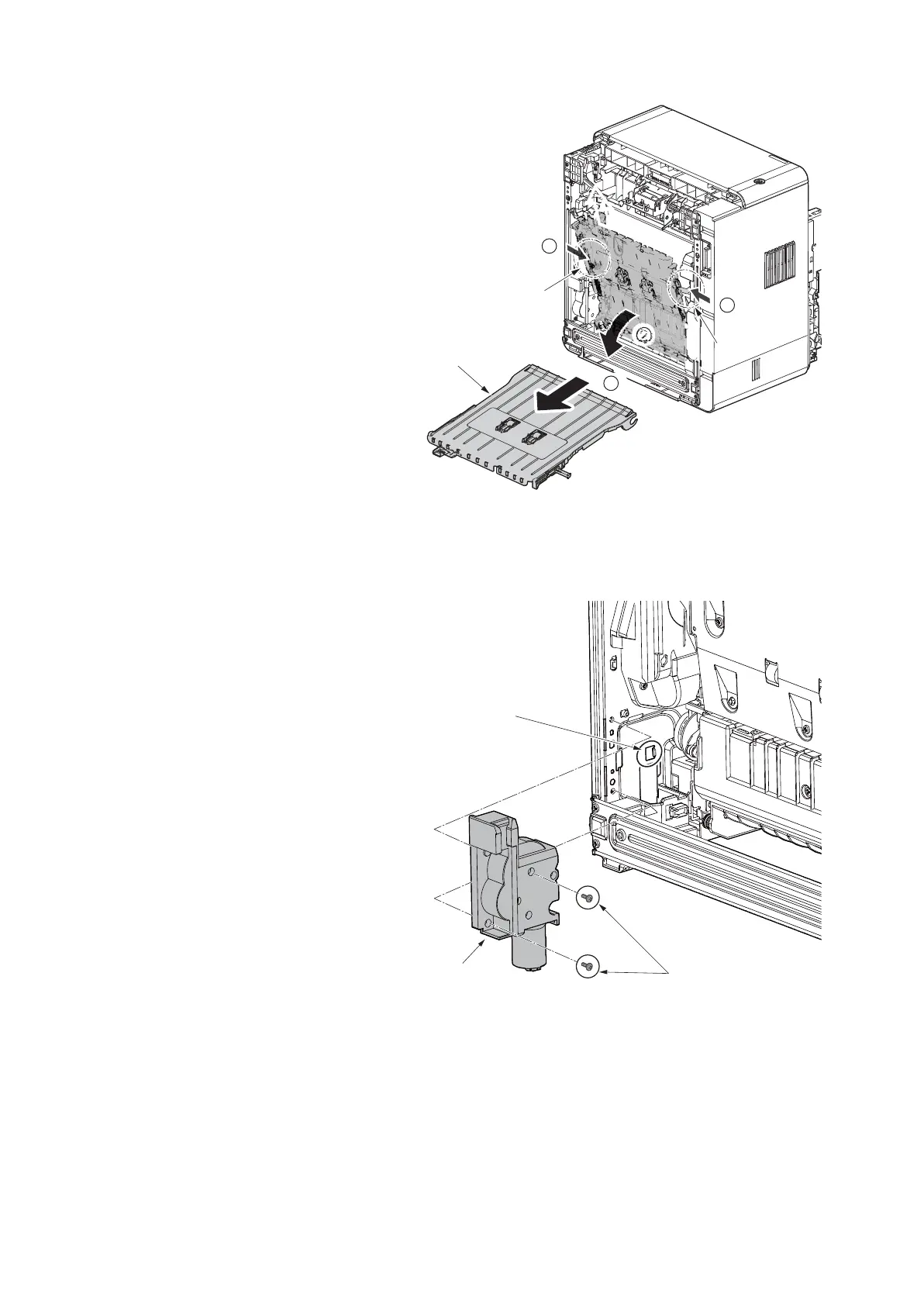

Figure 4-72
15. Remove two screws (a)(M3x8S tight).
16. Release the hook(b) and detach the
fuser pressure release drive unit(c).
17. Check the fuser pressure release drive
unit(c) and clean, or change it.
18. Reattach the parts in the original posi-
tion.
