Kyocera Ecosys P2235dw

2RV/2RW/2RX/2RY/3RA
4-49

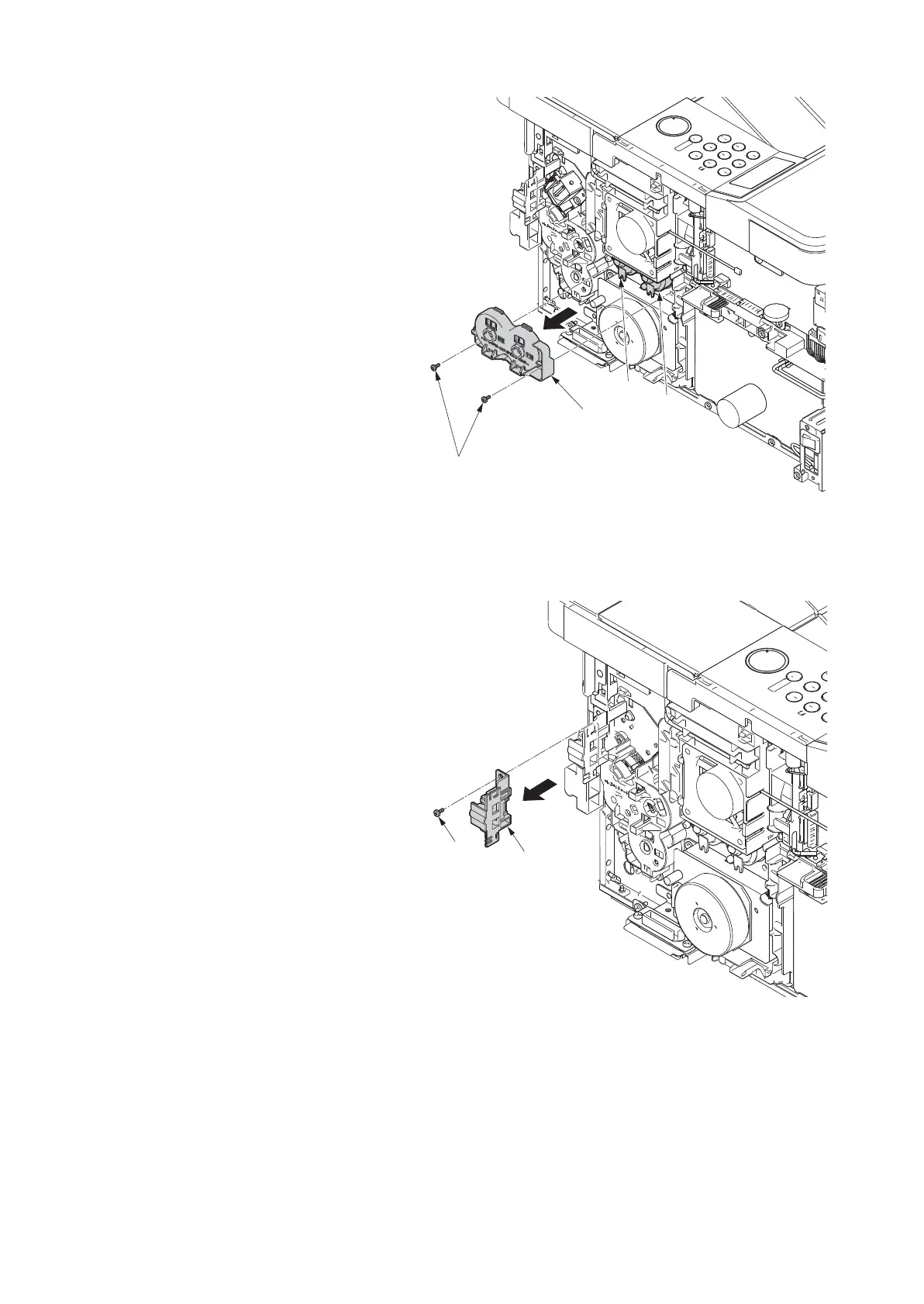

18. Remove two screws(M3x8S tight)(a),
detach the clutch cover(b).
19. Detach the developer clutch (c) and
registration clutch (d).
Figure 4-86
20. Remove the screw(M3x8P tight)(a) and
deatch the power switch(b).
Figure 4-87
a
b
d
c
a
b
