15. Release three hooks by using a flat-
head screwdriver (d).
16. Twist two hooks (c) at the front side of
the right cover (b) to release them and
detach the right cover (b).

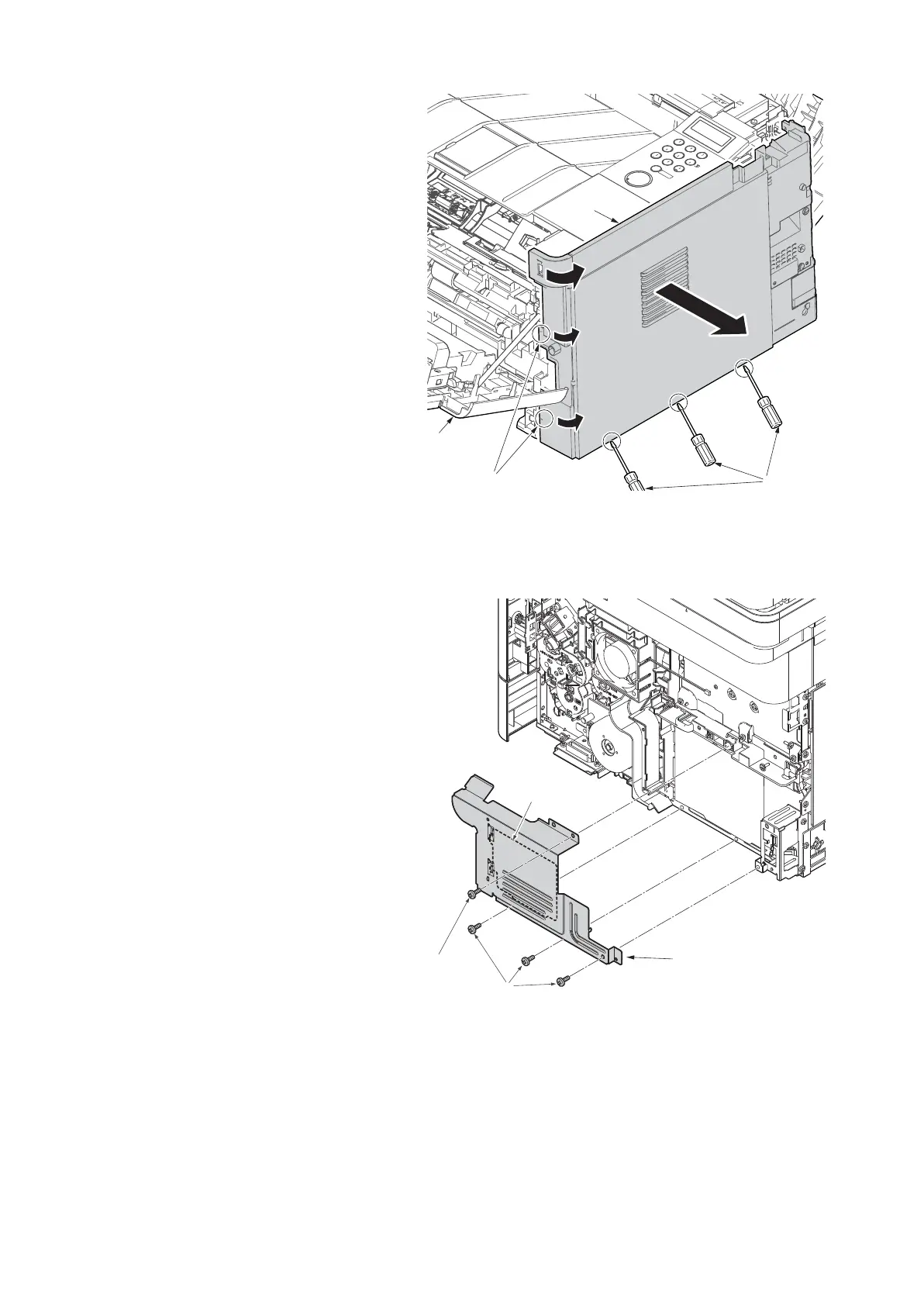

Figure 4-141
17. Remove the screw(M3×8Ptight) (b) and
three screws(M3×8Stight)(c) securing
the low voltage power source PWB
cover (a) .
18. Remove the low voltage power source
PWB cover (a).
Attention: When detaching the low voltage
power source PWB, the lower voltage
power source PWB protection plate (d) may
fall.
Figure 4-142
