Kyocera Ecosys P2235dw

2RV/2RW/2RX/2RY/3RA
4-85
18. Release three hooks by using a flat-
head screwdriver (d).
19. Twist two hooks (c) at the front side of
the right cover (b) to release them and
detach the right cover (b).

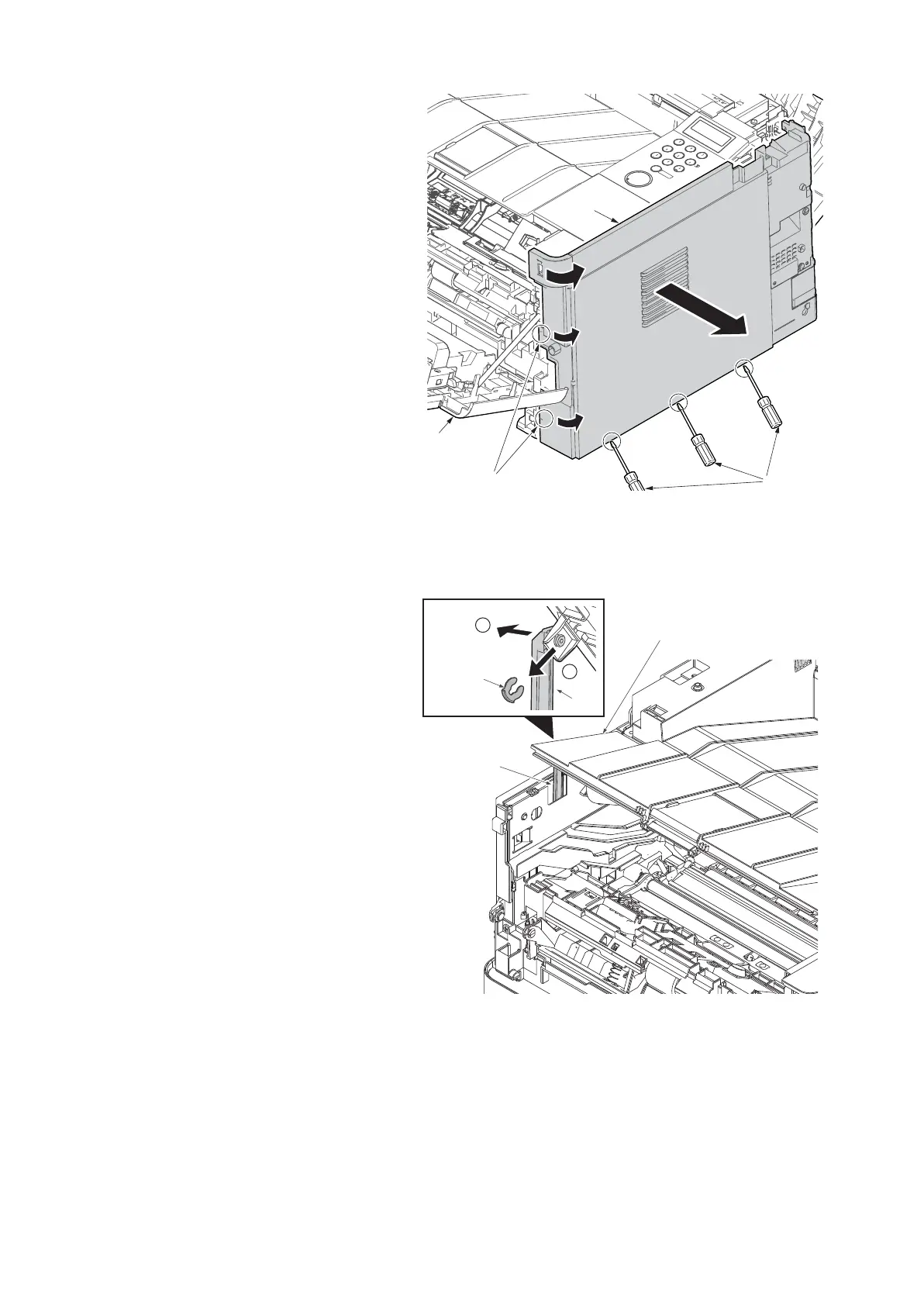

Figure 4-154
20. Open the top cover (a).
21. Remove the stop ring(b) and detach the
upper cover rack (c) from the upper
cover (a).
Figure 4-155
a
c
b
d
1
2
a
c
b
c
