Kyocera Ecosys P2235dw

2RV/2RW/2RX/2RY/3RA
4-92
4. Disconnect three connectors (b) from
the PF main PWB (a).
5. Remove the sheet(c) and open the wire
saddle(d).
6. Remove the fixed screws(M3x8TP)(e)
of the earth spring(f).

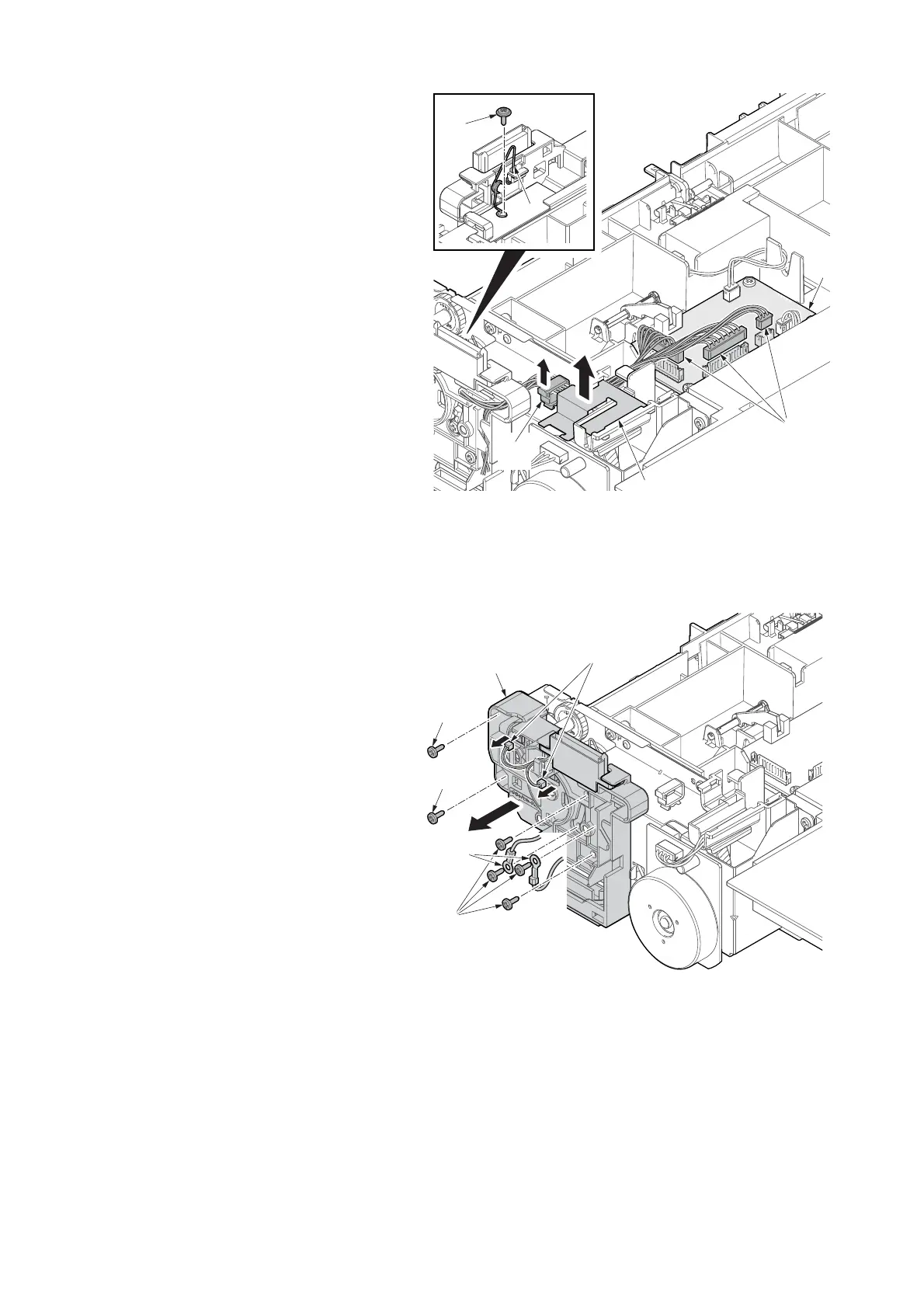

Figure 4-168
7. Disconnect two clutch connectors (a).
8. Remove six screws(M3x8S tight)(b)
and two ground terminals(c).
9. Detach the drawer support part (d).
Figure 4-169
