Kyocera Ecosys P2235dw Service Manual

2RV/2RW/2RX/2RY/3RA
5-6
Verify the signature at firmware update
Verify the signature of the update file to prevent the firmware update with illegally falsified data.
File names of the signature and firmware certificate
*1: 01 to 99 of a different number for each language is inserted in "xx".
Preparations
Unzip the file containing the downloaded firmware and then copy the firmware and high-speed master file
(skip files: ES_SKIP.ON) in the root folder of the USB memory.
*: If the high-speed master file exists, the same version firmware update is skipped.
Procedures
1. After turning the power switch (a) on
and checking the [Processing] indicator
is lit, turn the power switch (a) off.
2. Insert the USB memory (b) with the
firmware into the USB memory slot.
3. Turn the power switch (a) on.

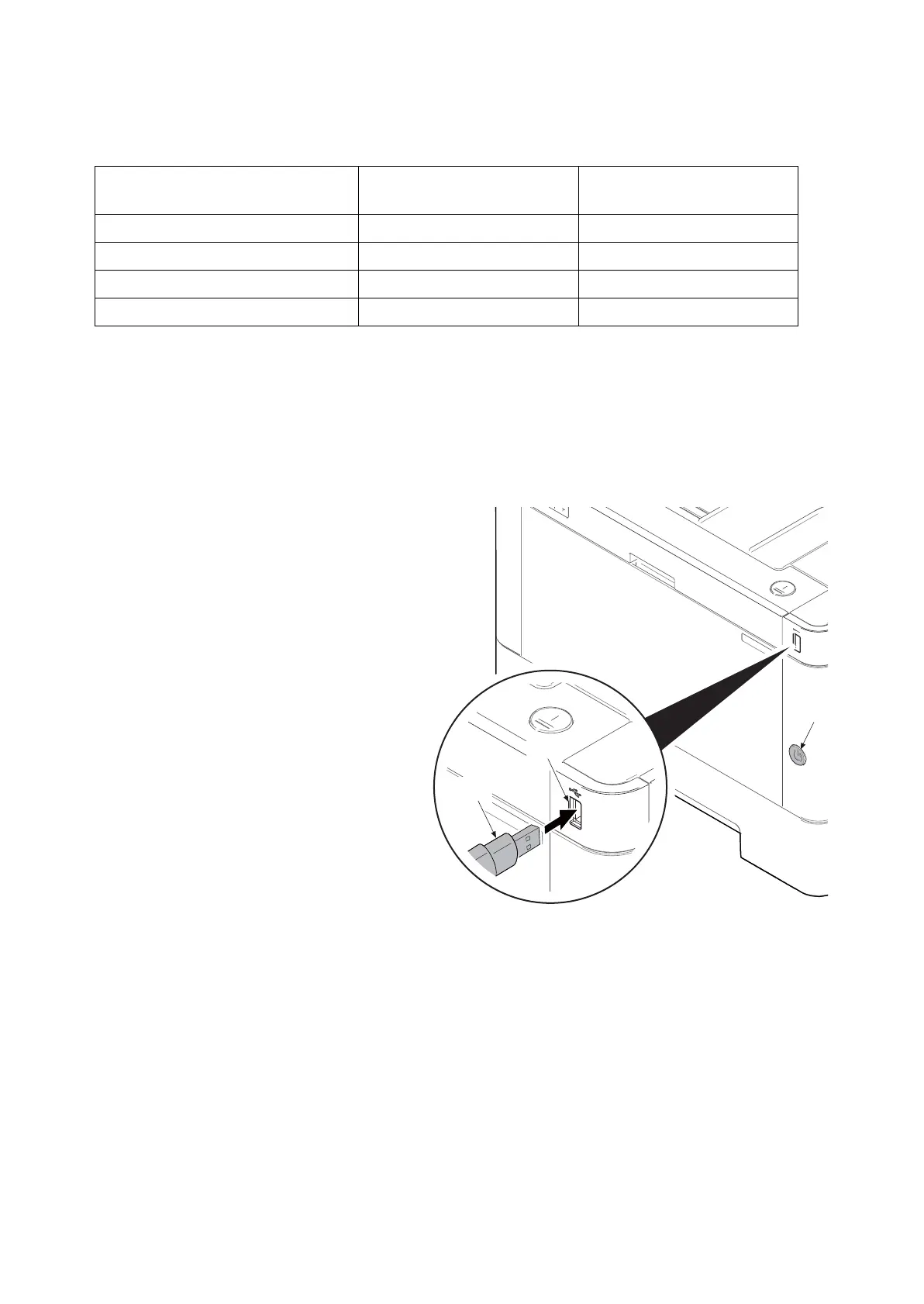

Figure 5-2
Target Signature file name Firmware certificate file
name
Controller data 2RV_CTRL_sign.bin 2RV_CTRL_cert.pem
Optional language data 2RV_OPT_xx_sign.bin*1 2RV_OPT_xx_cert.pem*1
Engine PWB 2RV_ENGN_sign.bin 2RV_ENGN_cert.pem
Data for optional language deletion 2RV_OPT_ER_sign.bin 2RV_OPT_ER_cert_pem
c
b
a

Kyocera Ecosys P2235dw Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Warm-up time (from sleep mode)	15 s
Time to first page (black, normal)	6.8 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Printer fonts	Barcode, Bitmap, TrueType, Windows
Printing colors	Black
Maximum duty cycle	20000 pages per month
Recommended duty cycle	1500 - 2500 pages per month
Replacement cartridges	TK-1150 (3.000 pagina's)
Number of print cartridges	1
Page description languages	PCL 5e, PCL 6, PCXL
Paper input type	Cassette, Paper tray
Total input capacity	250 sheets
Maximum input capacity	850 sheets
Maximum number of input trays	3
Multi-Purpose tray input capacity	100 sheets
Custom media width	105 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Letter (media size), Oficio (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Processor frequency	800 MHz
Compatible memory cards	SD, SDHC
Maximum internal memory	256 MB
Sound pressure level (printing)	47.9 dB
Sound pressure level (quiet mode)	44.8 dB
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Kyocera Mobile Print
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	TÜV/GS, CE, ISO
Product color	White
Market positioning	Business
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (ready)	8 W
Power consumption (standby)	0.8 W
Power consumption (printing)	620 W
Energy Star Typical Electricity Consumption (TEC)	1.36 kWh/week
Sustainability certificates	Blue Angel, ENERGY STAR
Package depth	516 mm
Package width	500 mm
Package height	400 mm
Package weight	18000 g
Cables included	AC
Included cartridge capacity (black)	1000 pages
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	393 mm
Width	375 mm
Height	272 mm
Weight	14000 g
