Kyocera FS-1060DN - 1-1-3 Machine Cross Section

2M2/2M3
1-1-5

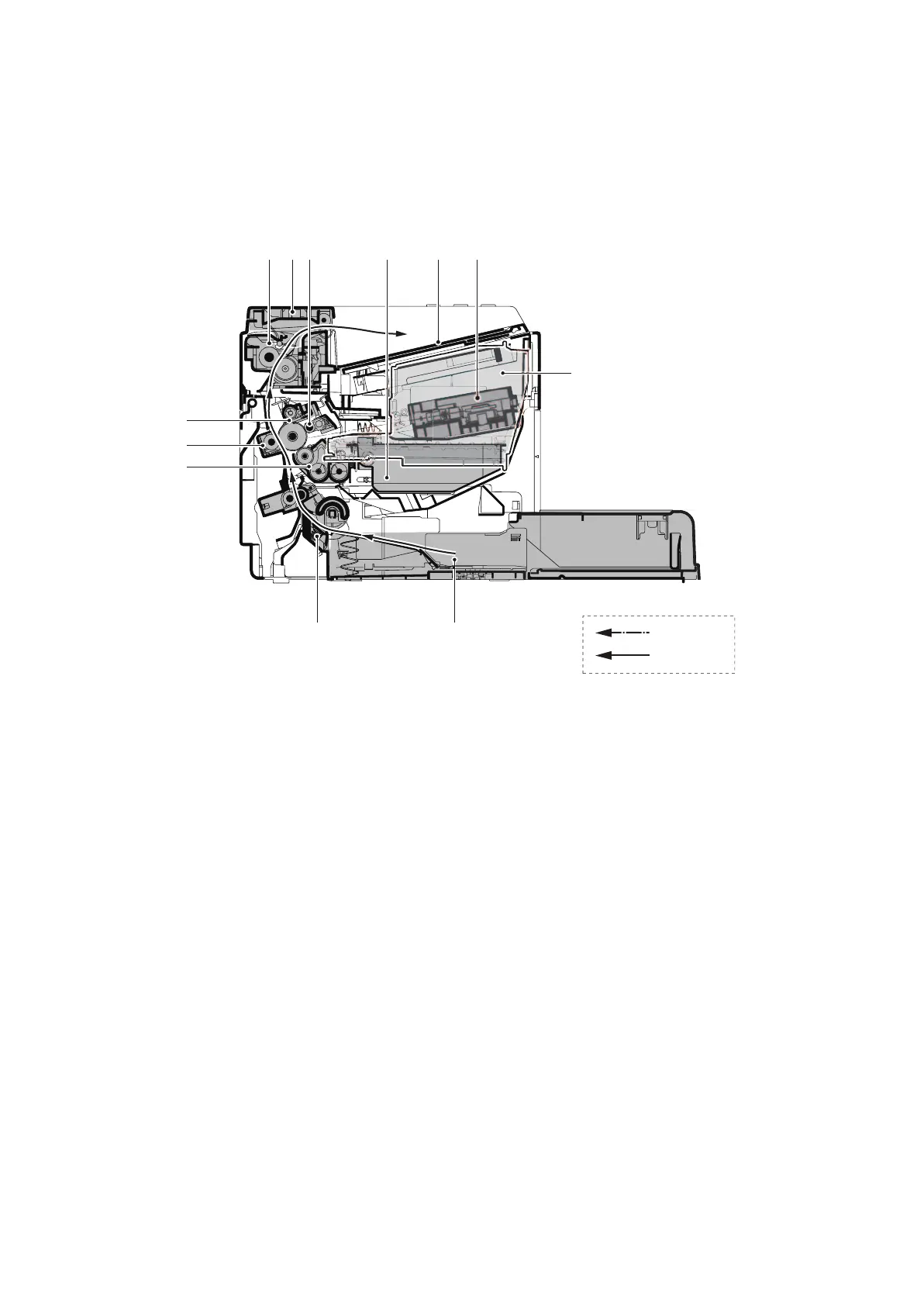

1-1-3 Machine cross section
(1) 20/21 ppm Model
Figure 1-1-3
1
91110
2
6
5
4
8
7
12
3
Paper path
Light path
1. Cassette
2. Paper feed/conveying section
3. Toner container
4. Developing unit
5. Waste toner box
6. Drum charge roller
7. Drum unit
8. Transfer/separation section
9. Laser scanner unit
10. Fuser section
11. Exit section
12. Top tray
