1-1-2 Parts names
(1) Machine

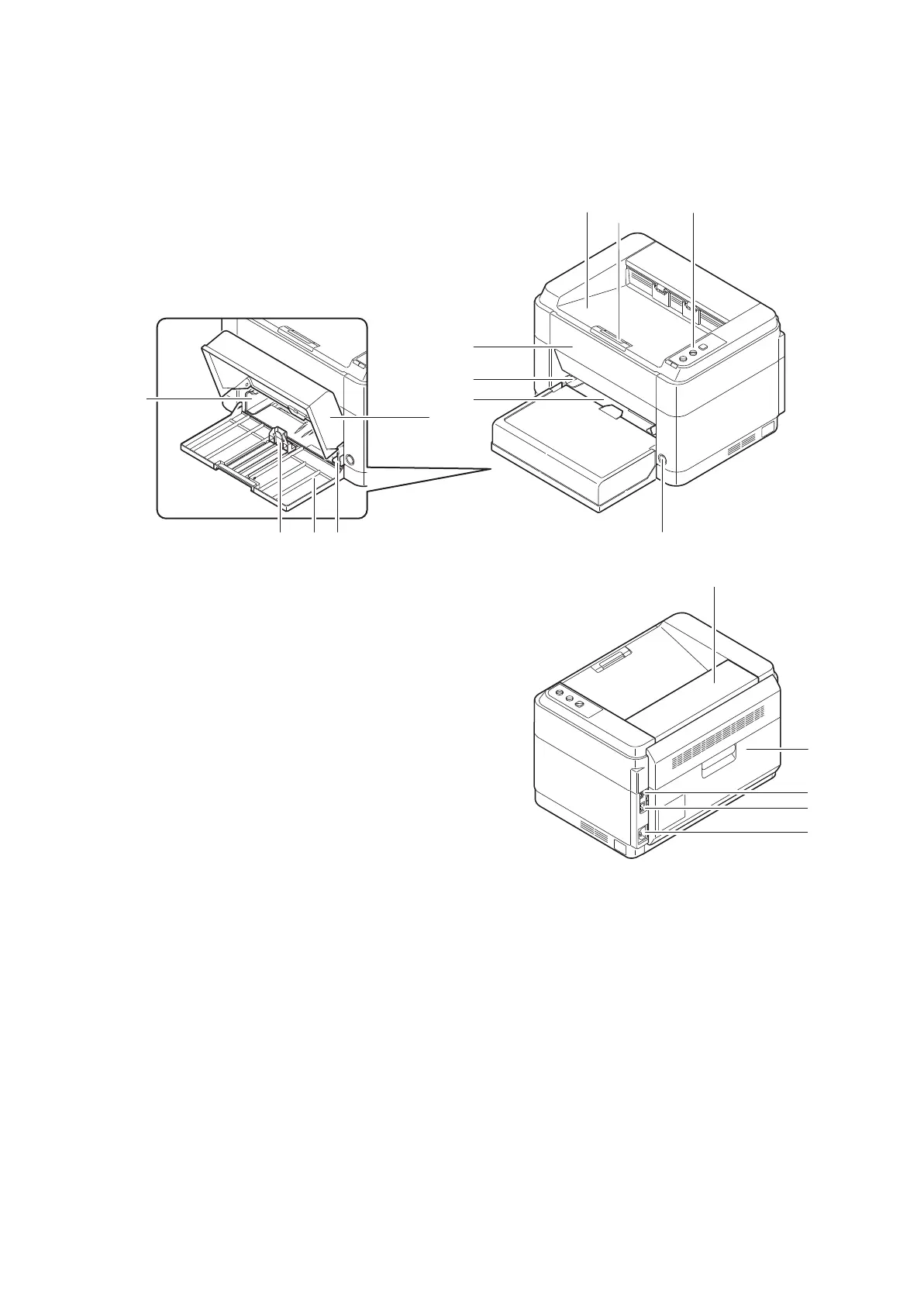

Figure 1-1-1
*: 25/26 ppm model only.
1
23
5
6
7
4
9 1011
8
12
13
14
15
16
10
1. Top tray
2. Paper stopper
3. Operation panel
4. Power switch
5. Front cover
6. Manual feed paper width guides*
7. Manual feed tray*
8. Cassette cover
9. Cassette
10. Paper width guides
11. Paper length guide
12. Fuser top cover
13. Rear cover
14. USB interface connector
15. Network interface connector*
16. Power code connector
