Kyocera FS-1060DN - Detaching and Refitting the Main Motor Unit

2M2/2M3
1-5-14
Figure 1-5-22
(2) Detaching and refitting the Main motor unit
Procedure
1. Remove the top cover and left cover
(see page 1-5-3,1-5-5).

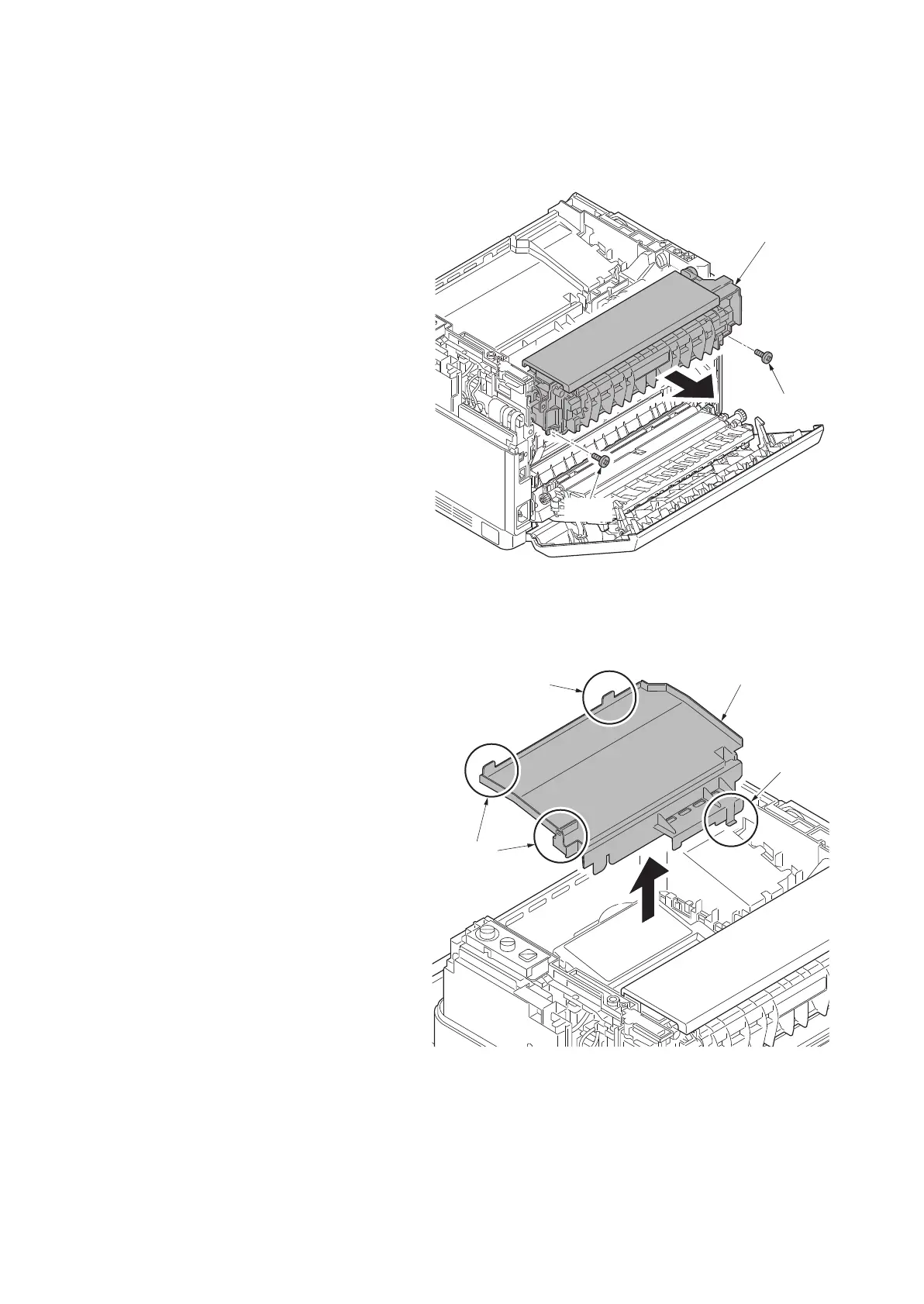

2. Remove the two screws and pull out the
fuser unit halfway out.
Figure 1-5-23
3. Unhook the four hooks and then
remove the upper LSU cover.
Figure 1-5-24
Fuser unit
Screw
Screw
Hook
Hook
Hooks
Upper LSU cover
