4. Remove the Drum unit (see page 2-4-
4).
5. Confirm that the laser shutter has
closed.

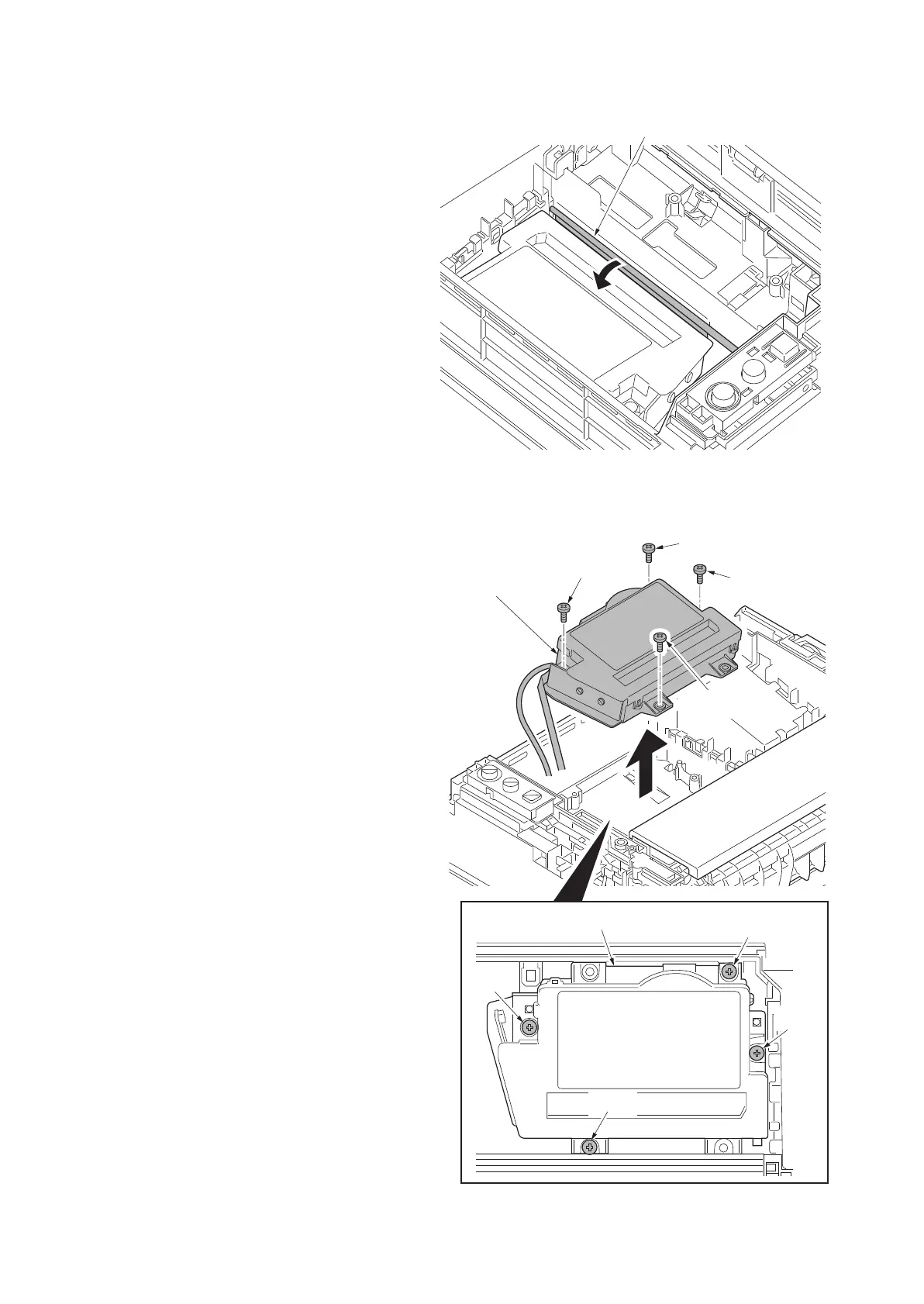

Figure 1-5-21
6. Remove four screws and then remove
the laser scanner unit.
7. Check or replace the laser scanner unit
and refit all the removed parts.
Laser shutter
Laser scanner unit
Laser scanner unit
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
