2M2/2M3

1-5-5

(3) Detaching and refitting the Left cover

Procedure

1. Remove the top cover (see page 1-5-3).

2. Unhook the five hooks and then remove

the left cover.

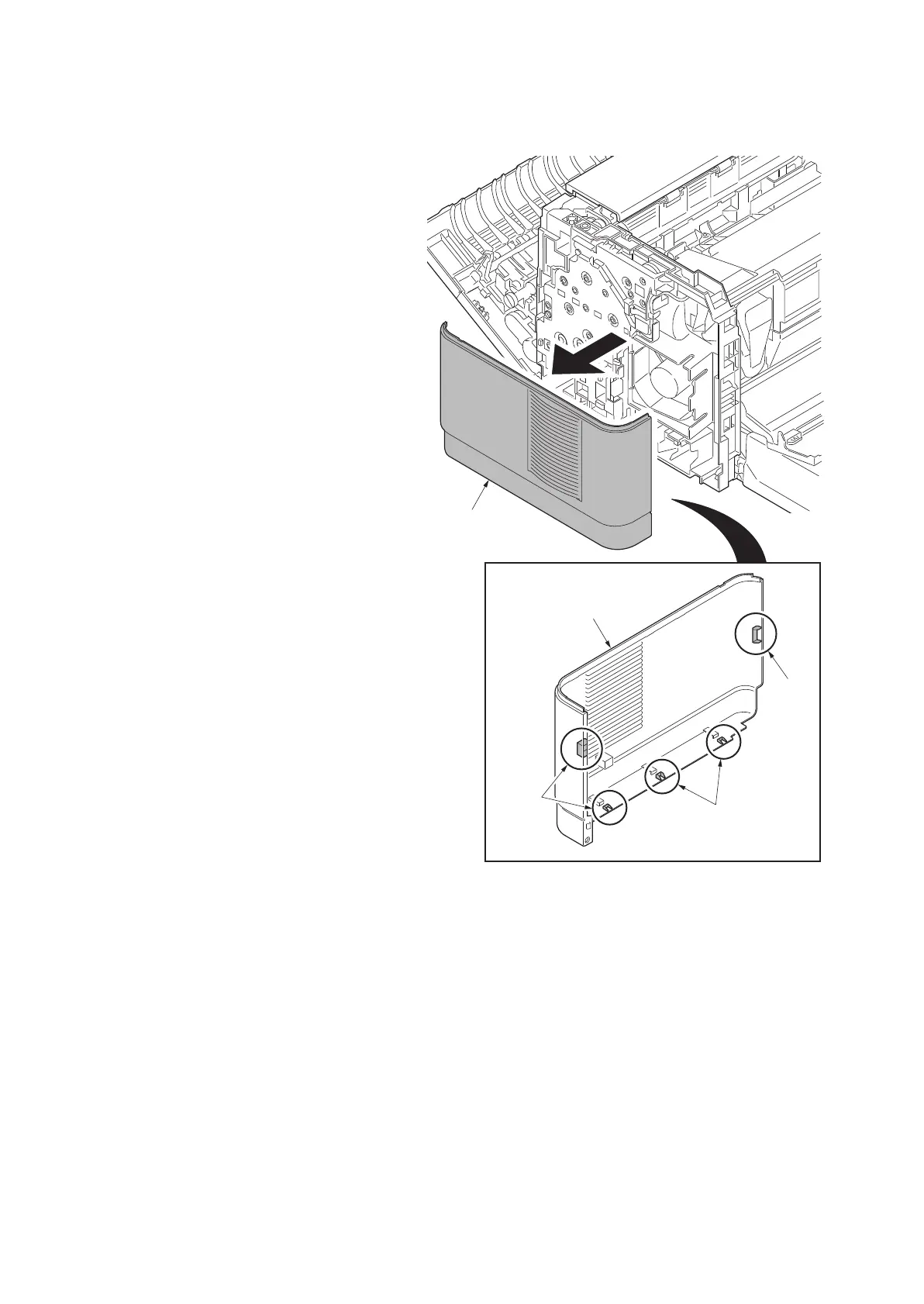

Figure 1-5-6

Left cover

Hooks

Hook
