2-1-7 Duplex conveying/Eject section
The paper exit section transports the paper which passed the fuser unit towards the top tray.
The paper which passed through the fuser unit, and is delivered to the top tray by the rotation of the eject
roller.
The duplex/conveying section consists of conveying path which sends the paper sent from the exit section to
the paper feed/conveying section when duplex printing.
.

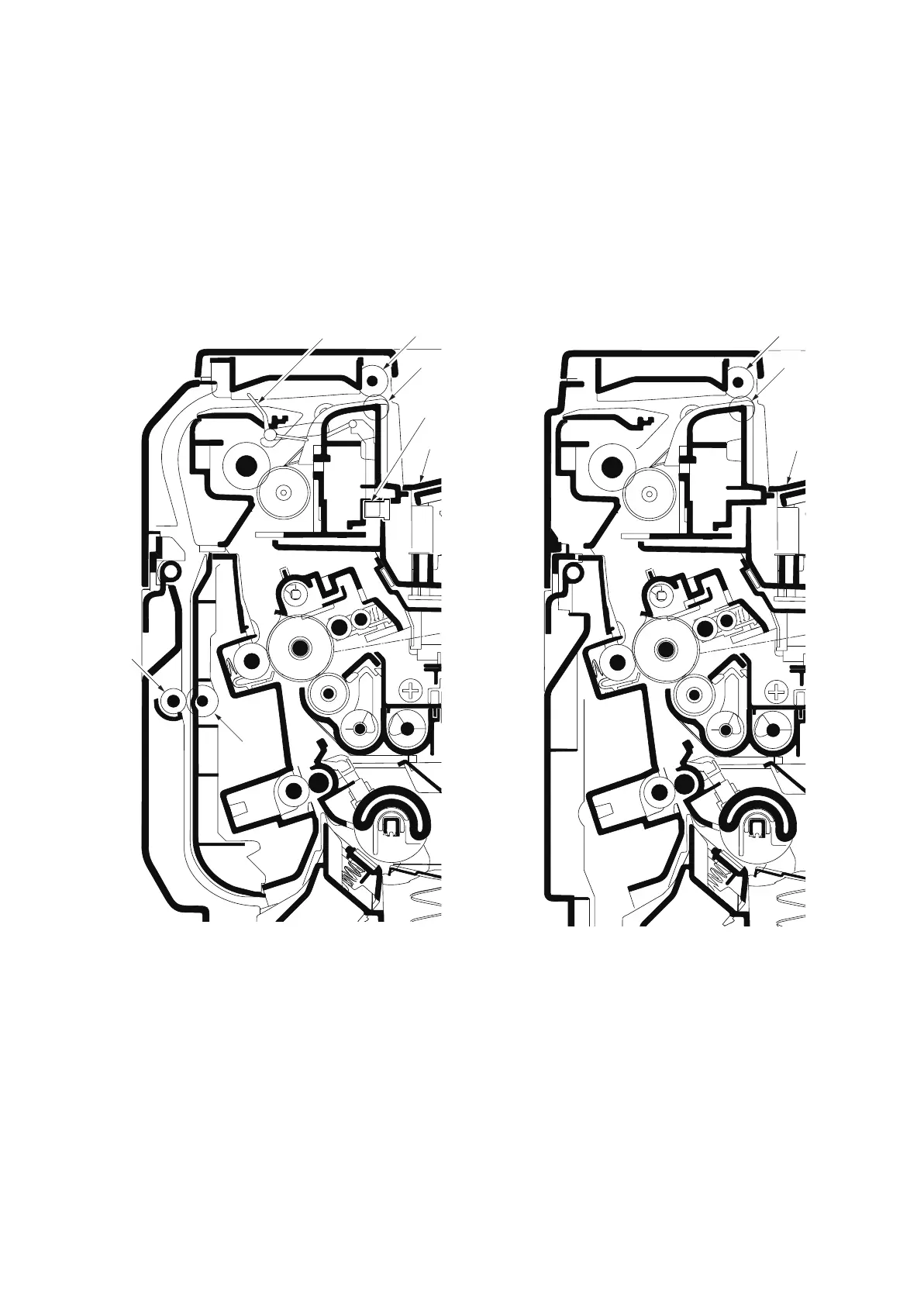

Figure 2-1-15 Duplex conveying section
3
2
1
6
5
4
7
2
1
7
25/26 ppm model 20/21 ppm model
1. Eject roller
2. Eject pulley
3. Duplex sensor
4. Actuator (duplex sensor)
5. Duplex roller
6. Duplex pulleys
7. Top tray
