Kyocera FS-1060DN - Page 75

131 pages

Save Page as PDF

To Next Page

To Previous Page

2M2/2M3

1-5-9

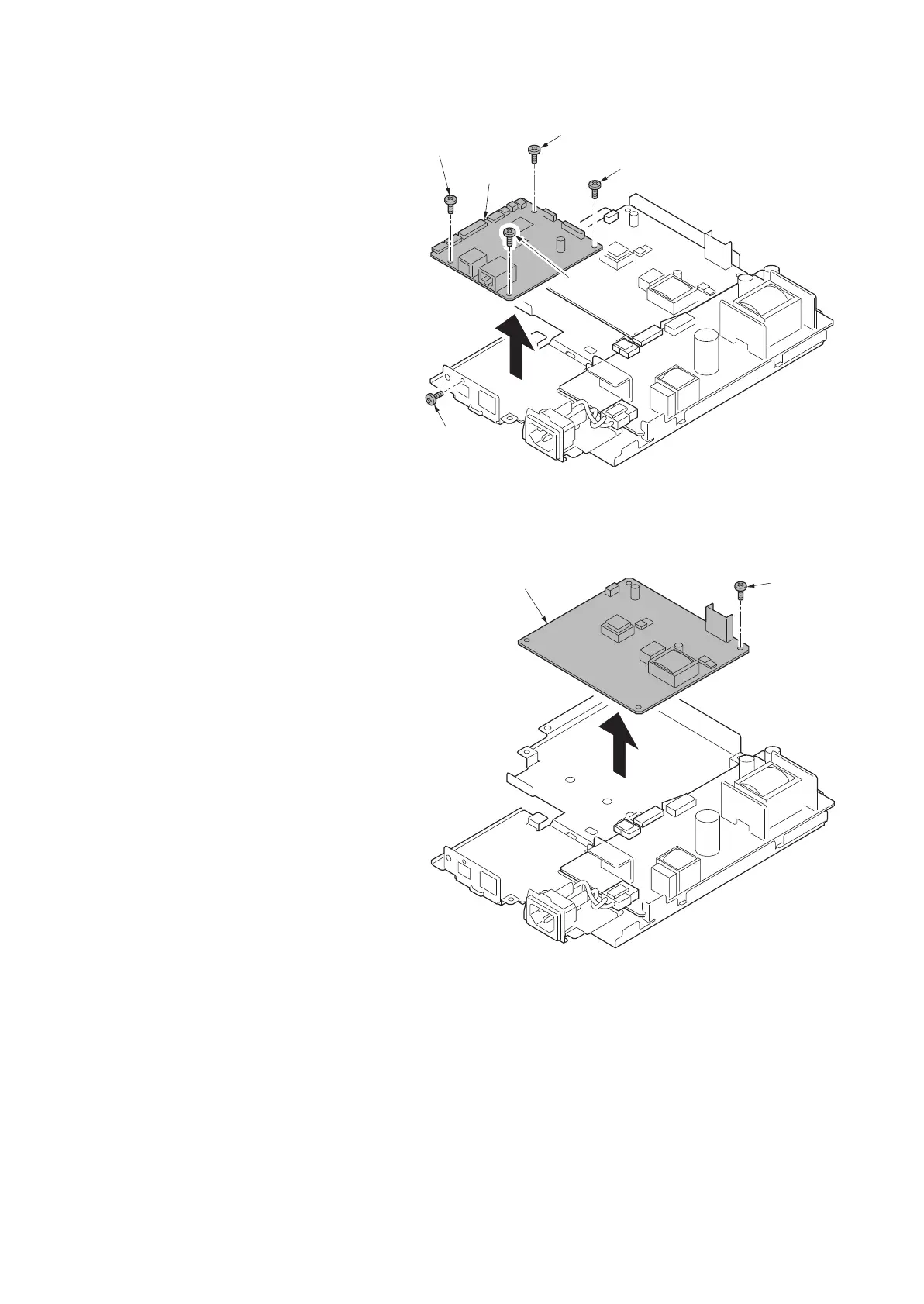

8. Remove five screws and then remove

the main PWB.

Figure 1-5-13

9. Remove screw and then remove the

high voltage PWB.

Figure 1-5-14

Main PWB

Screw

High voltage PWB
