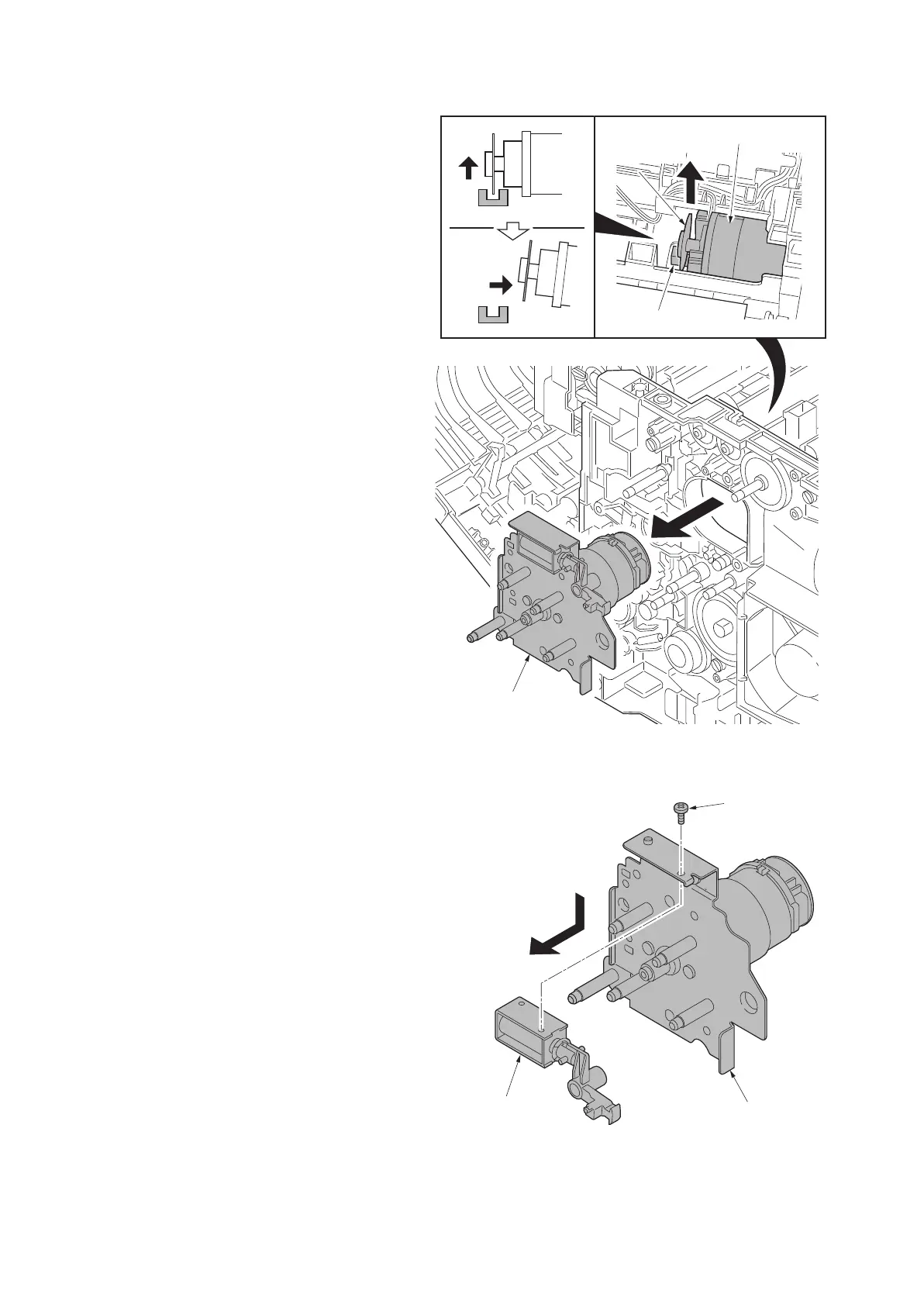

14. Remove the main motor unit so that the
pulse board will not hit the sensor.
Figure 1-5-33
15. Remove a screw and remove the
duplex solenoid from the main motor
unit (25/26 ppm model only).
*: To fit the main motor unit to the
machine, make sure not to let the pulse
board hit the sensor.
Figure 1-5-34
Main motor
Sensor
Main motor unit
Pulse board
Screw
Main motor unit
Duplex solenoid
