Kyocera FS-C5150DN

To Next Page

To Previous Page

2KT/2KV

1-5-4

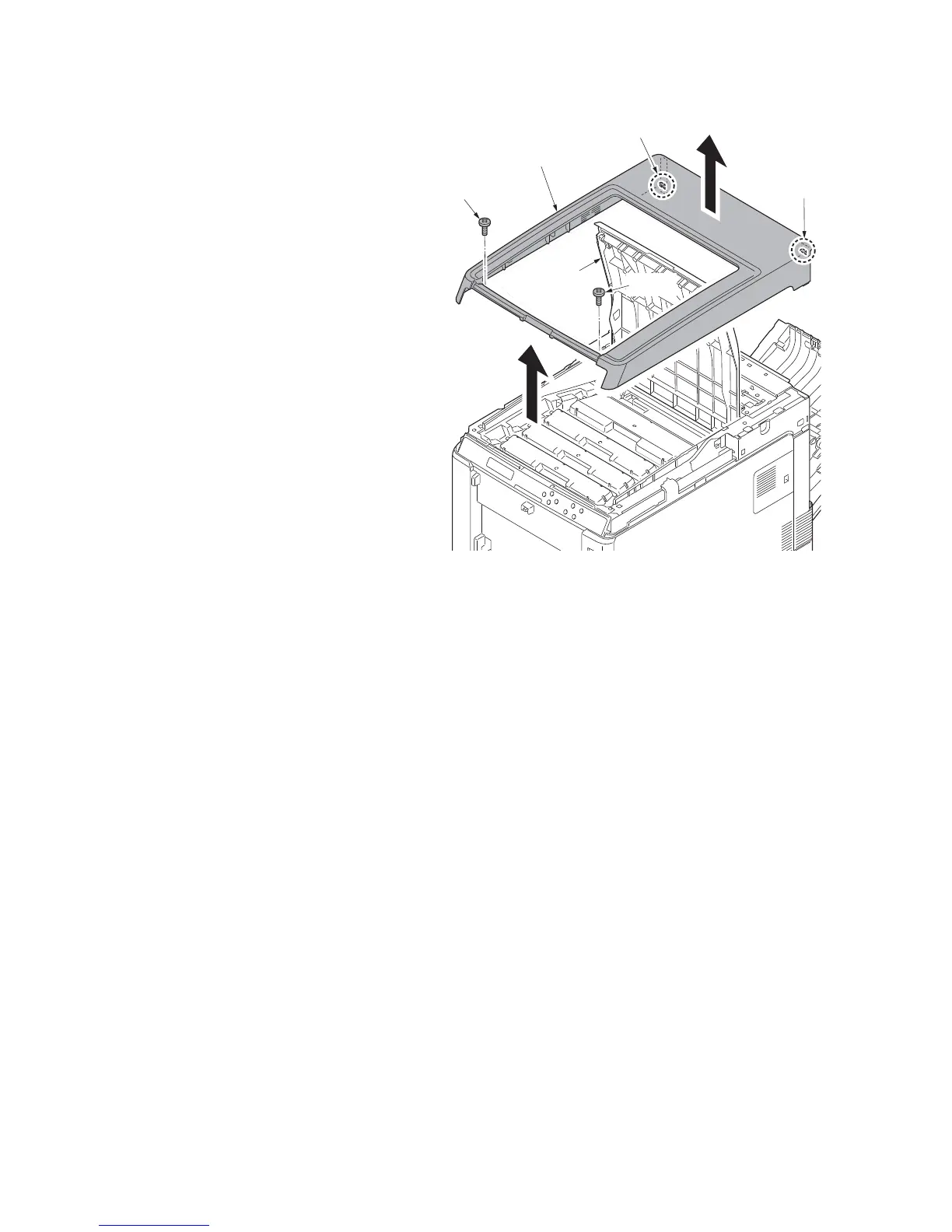

4. Open the top tray.

5. Remove two screws.

6. Release two hooks and then remove

the top tray.

Figure 1-5-5

Screw

Top cover

Top tray

Hook
