Kyocera FS-C5150DN

2KT/2KV
1-2-12
1-2-4 Installing the hard disk (option for 26/28 ppm model only)
Procedure
1. Turn off the main power switch.
Caution: Do not insert or remove hard
disk while machine power is on.
Doing so may cause damage to the
machine and the hard disk.

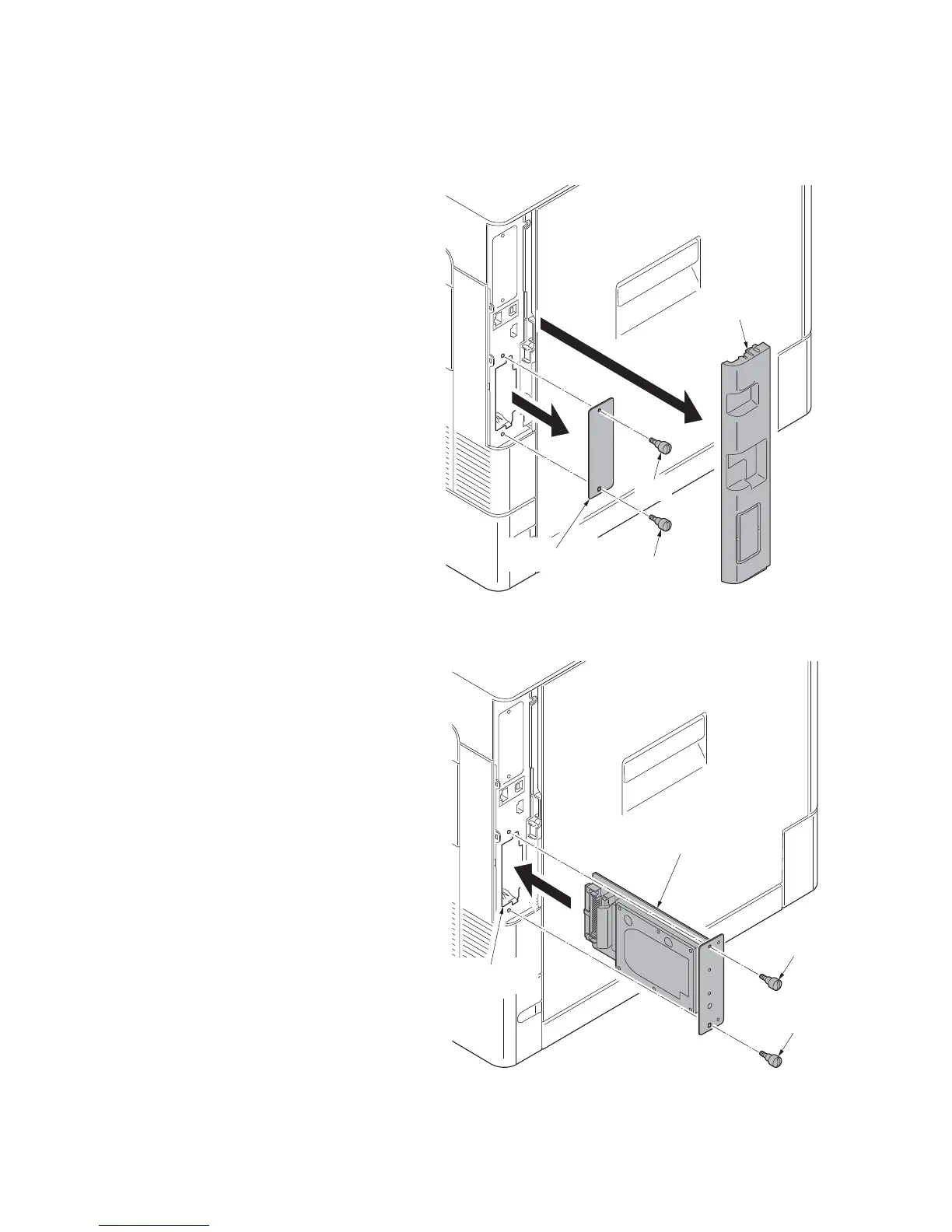

2. Remove the IF cover.
3. Remove two pins and then remove the
slot cover.
Figure 1-2-18
4. Insert the hard disk into the interface
slot.
5. Secure the hard disk by using two pins.
Figure 1-2-19
Pin
Pin
IF cover
Slot cover
Pin
Pin
Hard disk
Interface slot
