Kyocera FS-C5150DN

2KT/2KV
1-1-6

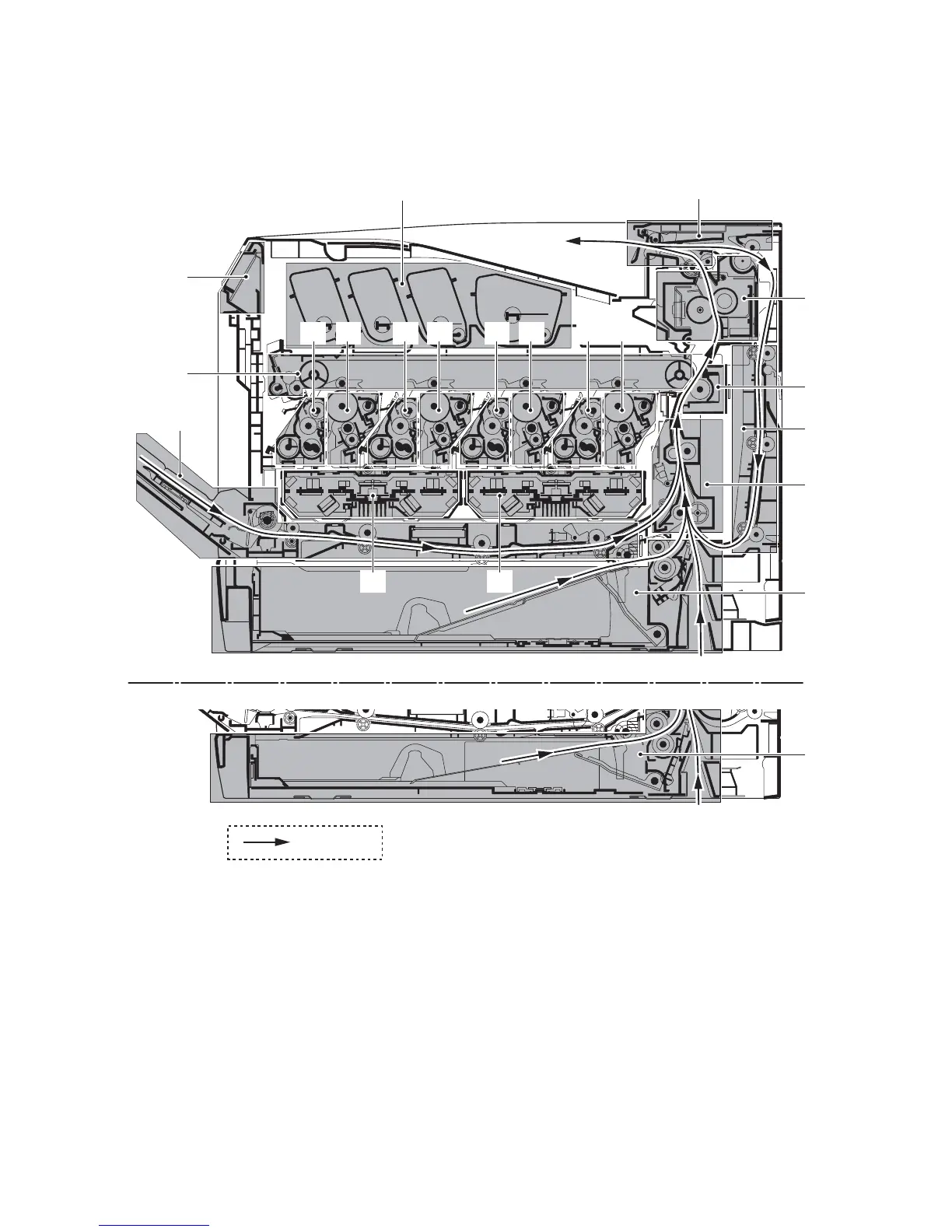

1-1-3 Machine cross section
Figure 1-1-4
13
15
20
9
5
14
2
18
17
19
3
16
12
4
8 11 7 10 6
Paper path
26/28 ppm
model
21/23 ppm
model
1
1
1. Cassette paper feed section
2. MP tray paper feed section
3. Paper conveying section
4. Laser scanner unit KM
5. Laser scanner unit CY
6. Drum unit K
7. Drum unit M
8. Drum unit C
9. Drum unit Y
10. Developing unit K
11. Developing unit M
12. Developing unit C
13. Developing unit Y
14. Toner container section
15. Primary transfer section
16. Secondary transfer/Separa-
tion sections
17. Fuser section
18. Eject/Feed shift sections
19. Duplex section
20. Operation panel section
