1-5-2 Outer covers
(1) Detaching and refitting the top cover
Procedure

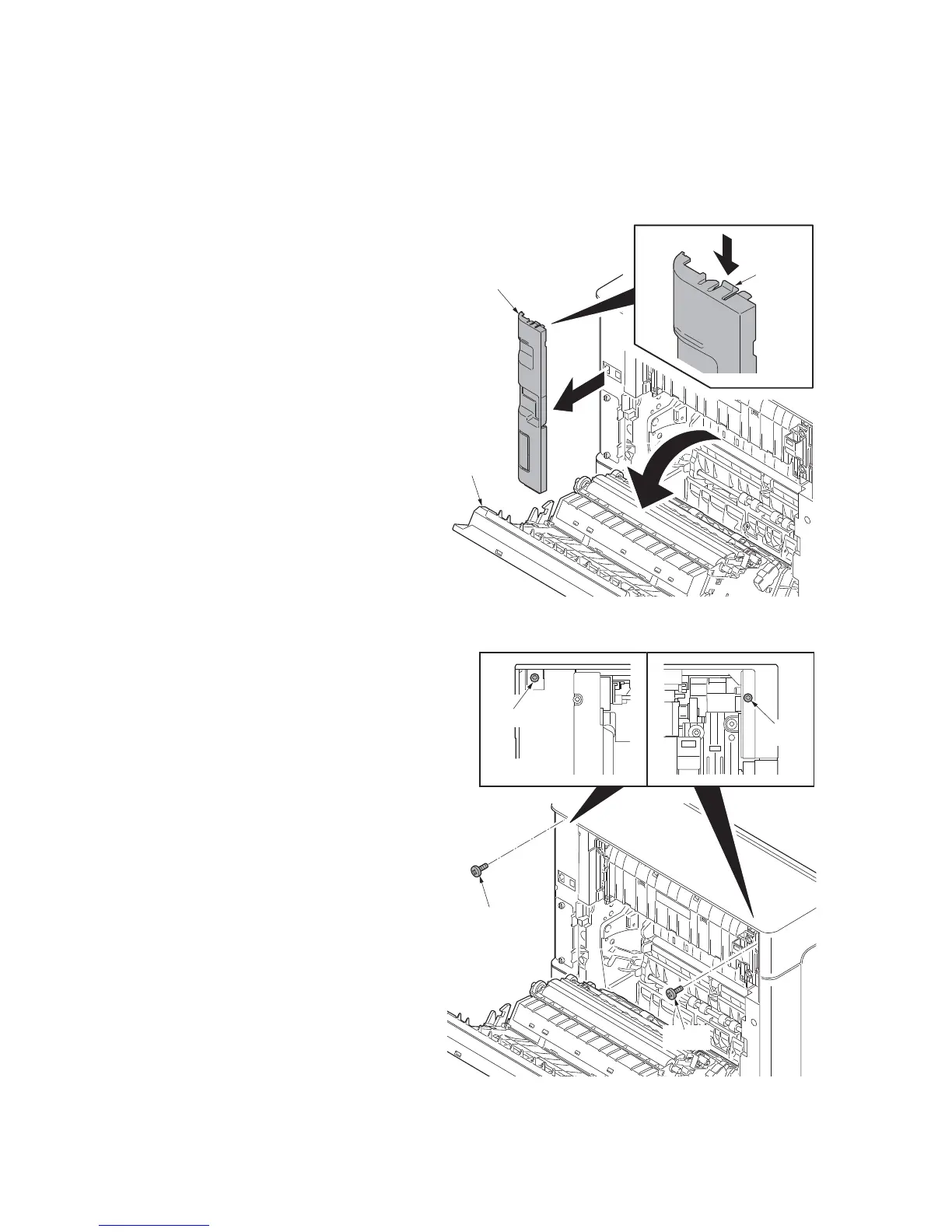

1. Open the paper conveying unit.
2. Release the hook and then remove the
IF cover.
Figure 1-5-3
3. Remove two screws.
Figure 1-5-4
IF cover
Paper
conveying
unit
Hook
Screw
Screw
Screw
Screw
