Kyocera FS-C5150DN

2KT/2KV
2-1-21
2-1-8 Duplex conveying section
The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.

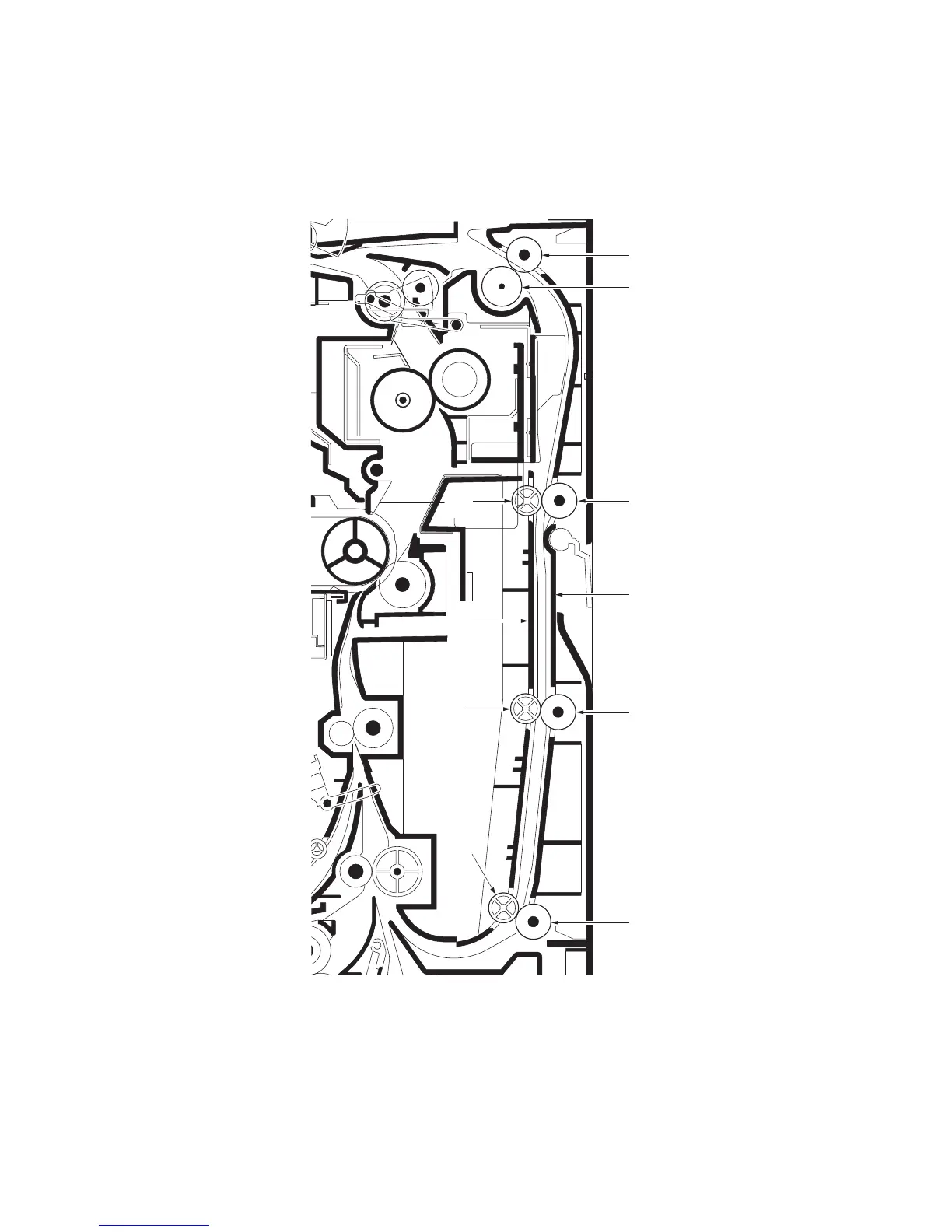

Figure 2-1-22 Duplex conveying section
3
5
1
2
3
4
4
6
3
4
1. Duplex roller L
2. Eject pulley
3. Duplex rollers S
4. Duplex pulleys
5. Duplex frame
6. Duplex feed guide
