Kyocera FS-C5150DN

2KT/2KV
1-5-16

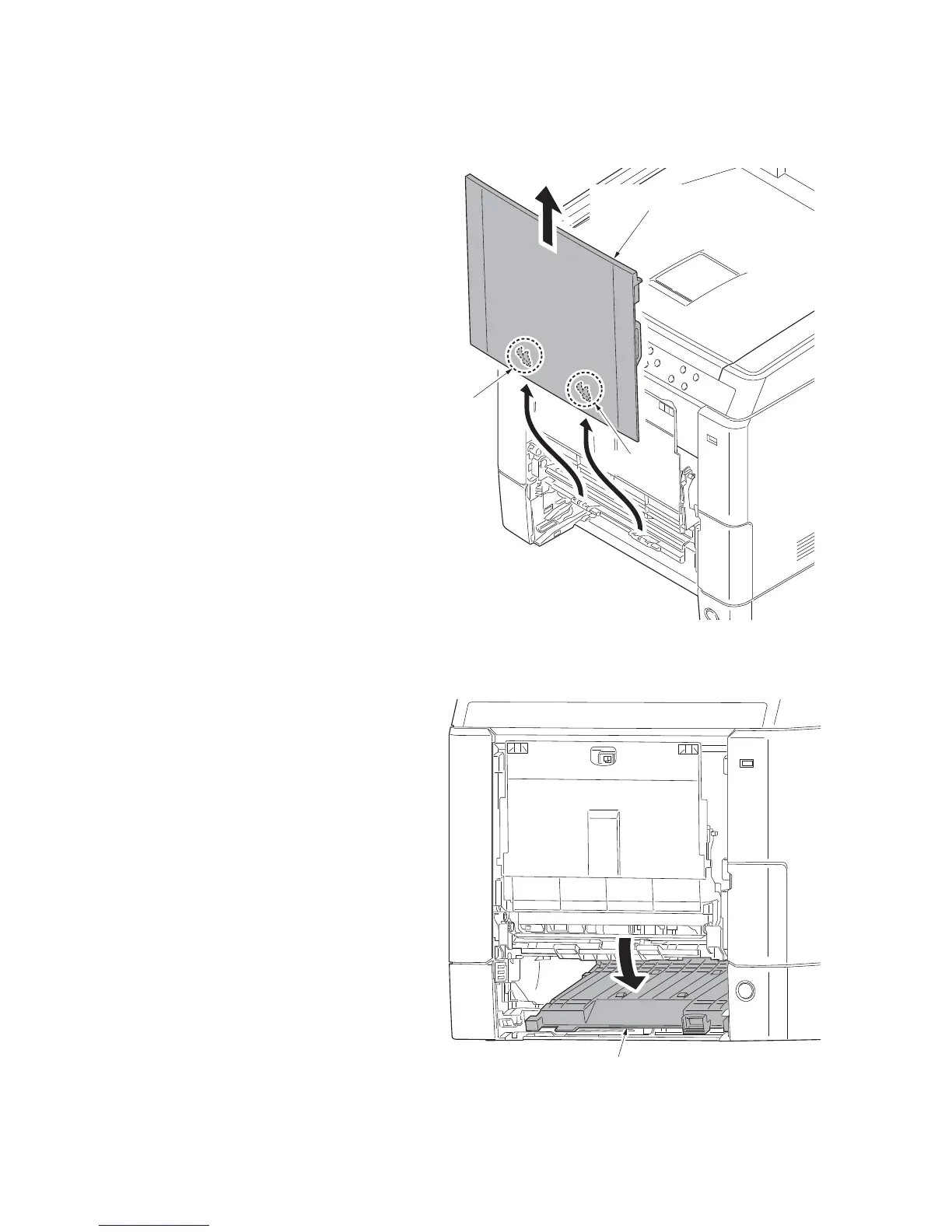

(3) Detaching and refitting the MP paper feed roller
Procedure
1. Remove the cassette.
2. Raise the MP tray cover upward.
Release two hooks and then remove
the MP tray cover.
Figure 1-5-22
3. Open the conveying lower cover.
Figure 1-5-23
Hook
Hook
MP tray cover
Conveying lower cover
