Kyocera FS-C5150DN

To Next Page

To Previous Page

2KT/2KV

1-5-10

(4) Detaching and refitting the inner cover

Procedure

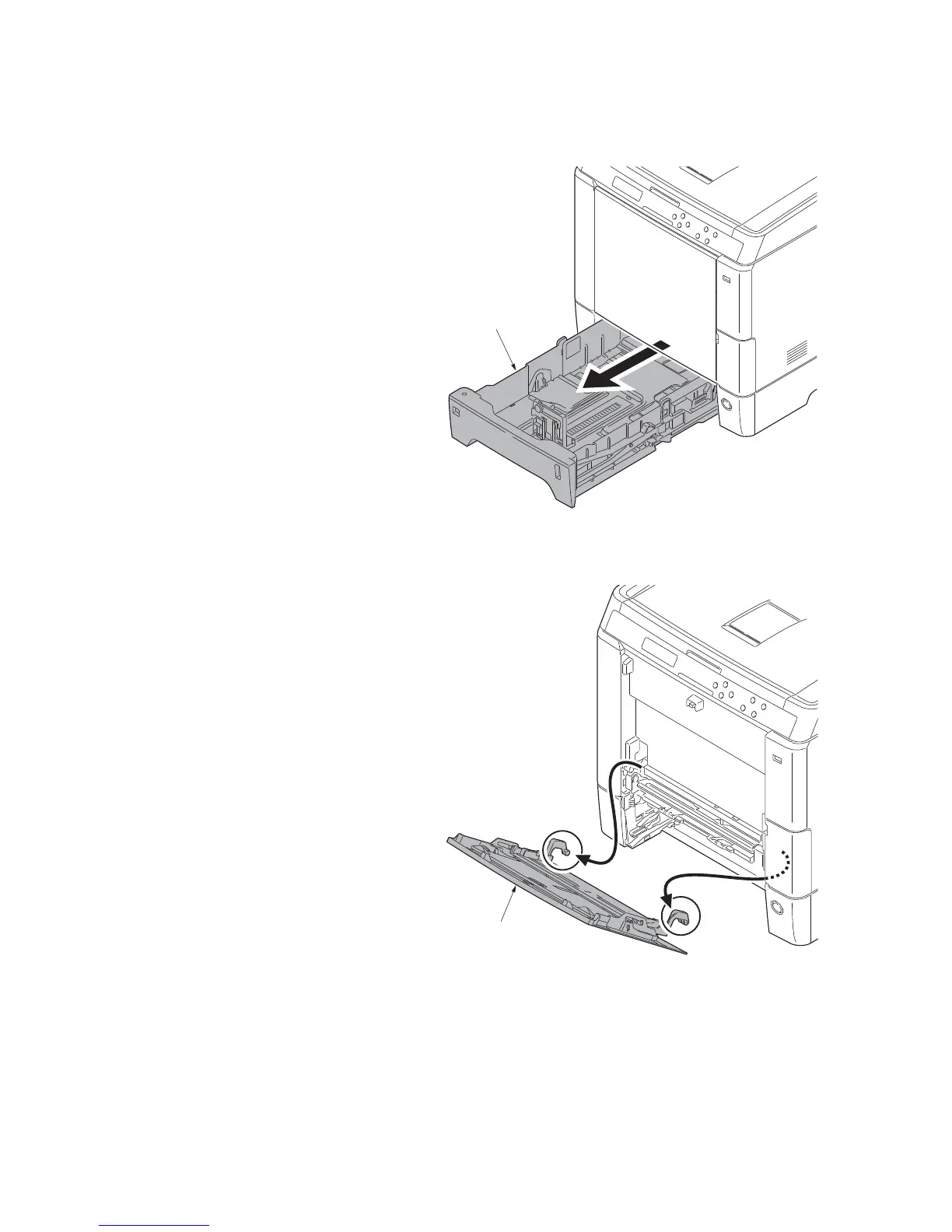

1. Remove the cassette.

Figure 1-5-15

2. Remove the MP tray.

Figure 1-5-16

Cassette

MP tray
