Kyocera FS-C5150DN

2KT/2KV
1-5-46
1-5-11 Others
(1) Detaching and refitting the paper conveying unit
Procedure

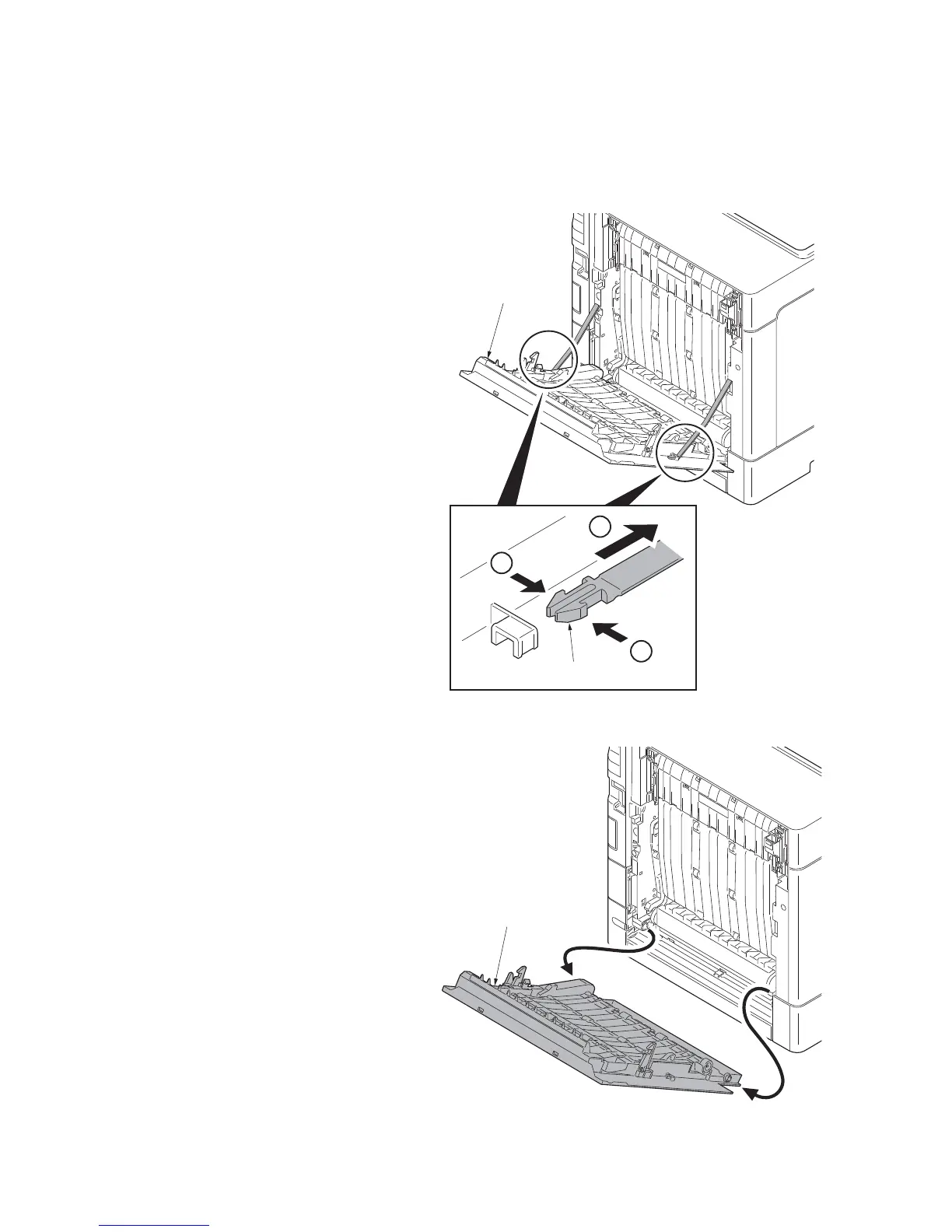

1. Open the rear cover.
2. Remove left and right straps.
Figure 1-5-69
3. Remove the rear cover unit.
Figure 1-5-70
Rear cover
Strap
1
1
2
Rear cover unit
