11. Remove each three screws and then
remove laser scanner unit (KM, CY).
12. Check or replace the laser scanner unit
and refit all the removed parts.

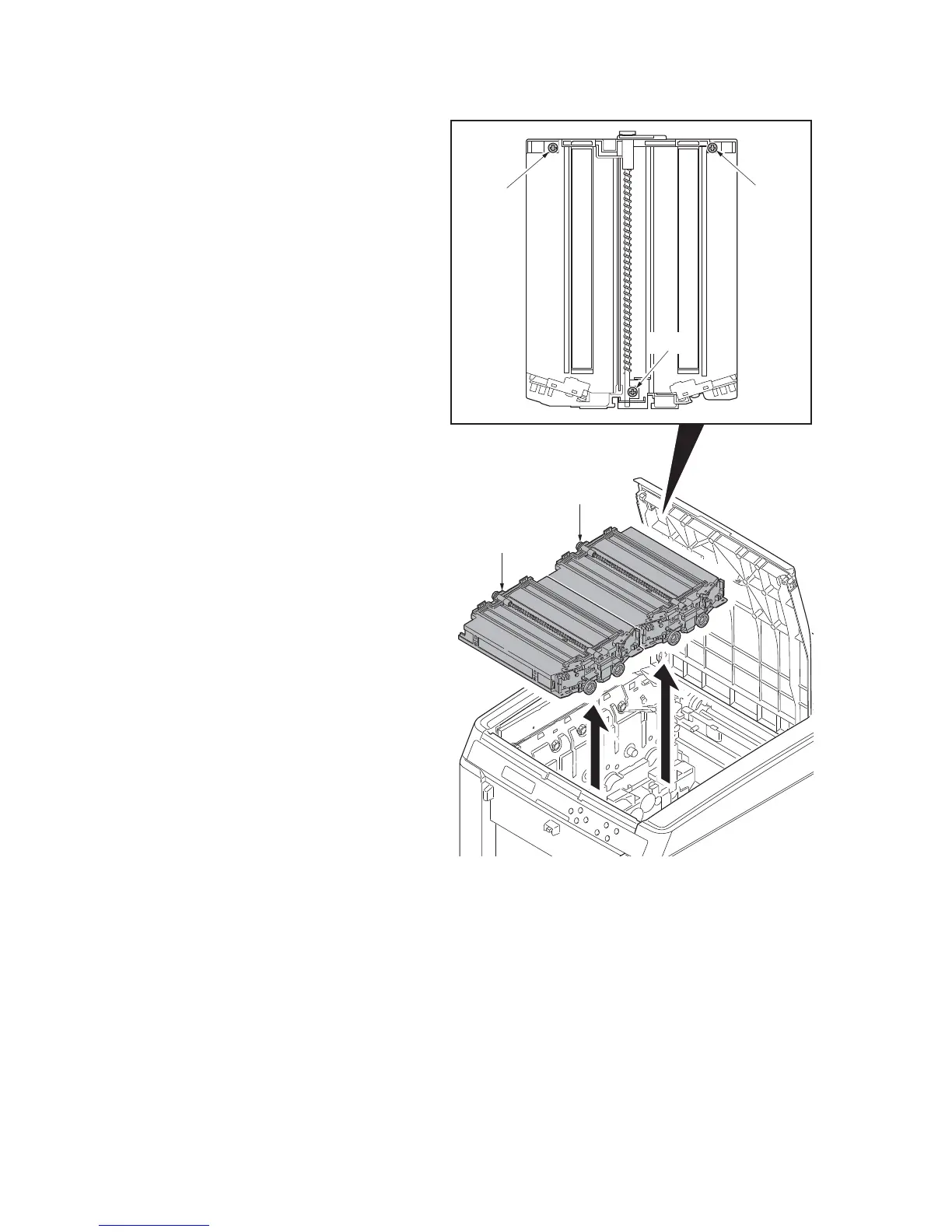

Figure 1-5-68
Screw
Screw
Laser scanner
unit (CY)
Laser scanner
unit (KM)
Screw
