2KT/2KV
1-5-44
7. Remove the right rear cover, right cover
and right lower cover (see page 1-5-5).
8. Remove the controller shield (see page
1-5-29).
9. Remove two connectors (YC6, YC7)
from main PWB.

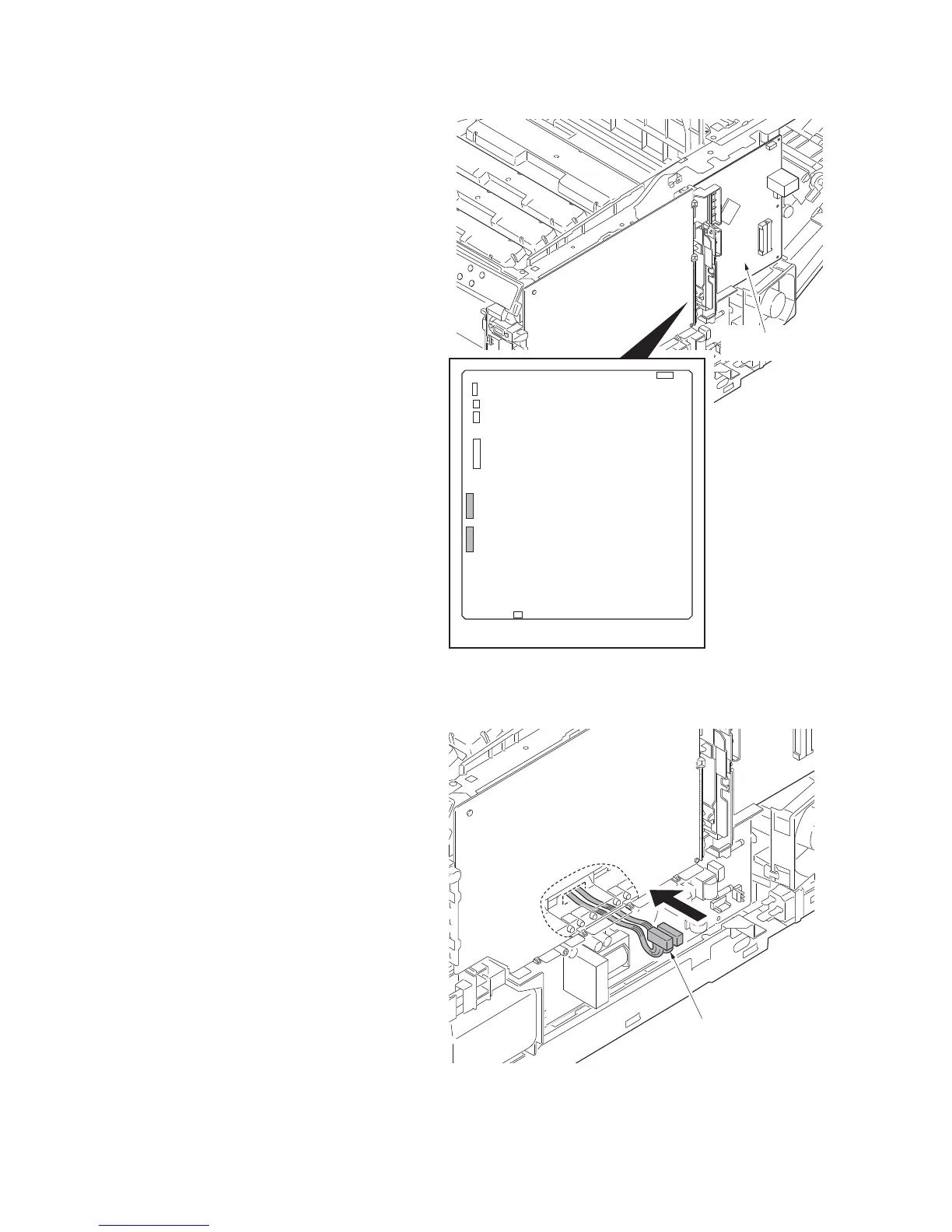

Figure 1-5-66
10. Draw two connectors (YC6, YC7) into
the machine inside.
Figure 1-5-67
YC6
YC7
Main PWB
Main PWB
Connector
(YC6, YC7)
To Next Page
