1-5-5 Drum section
(1) Detaching and refitting the drum unit
Procedure
1. Remove the intermediate transfer unit
(see page 1-5-21).
2. Remove drum units (K, M, C, Y).
3. Check or replace the drum unit and refit
all the removed parts.

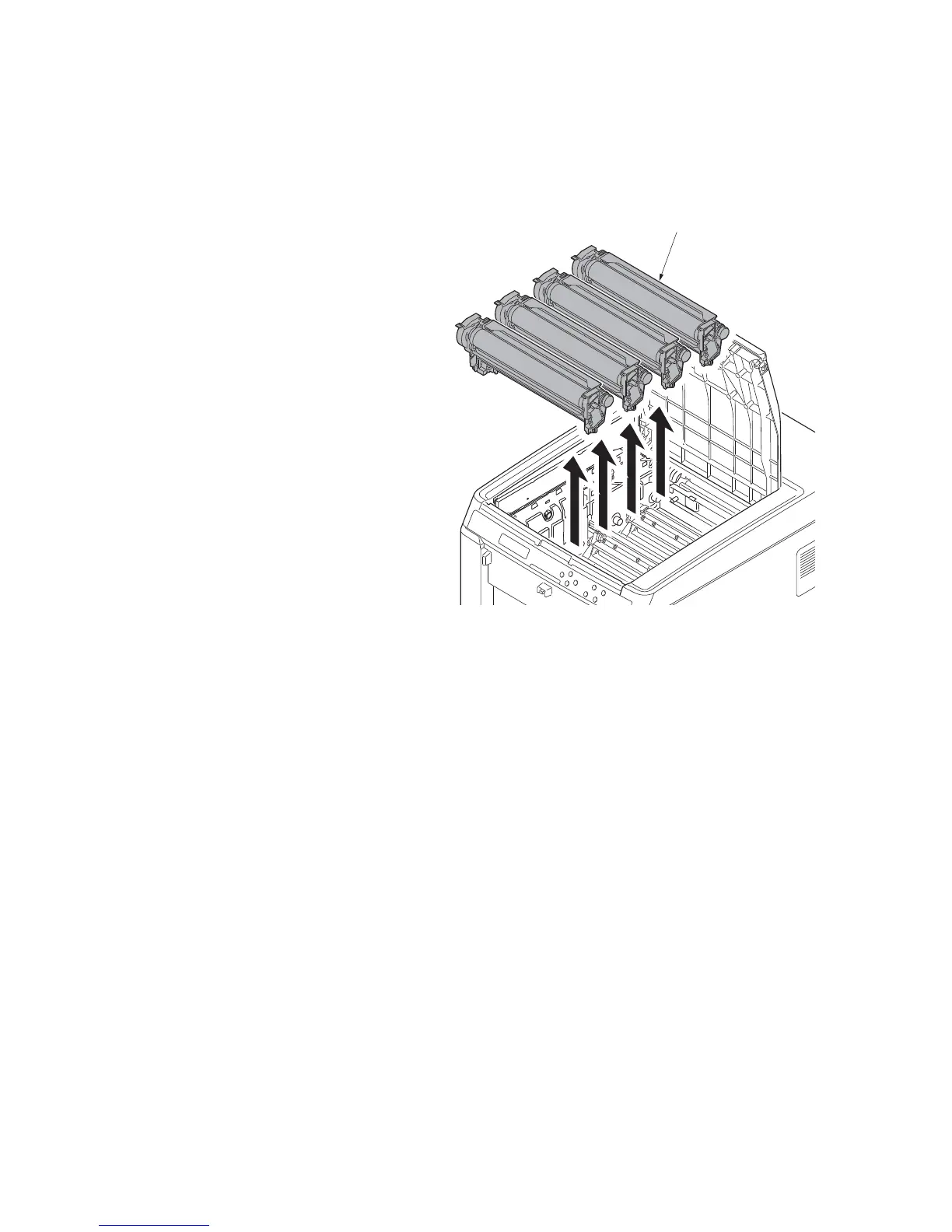

Figure 1-5-28
Drum unit (K,M,C,Y)
