(3) Detaching and refitting the left rear cover, left cover and left lower cover
Procedure
1. Remove the top cover (see page 1-5-3).
2. Release the hook. Slide the left rear
cover upward and then remove it.

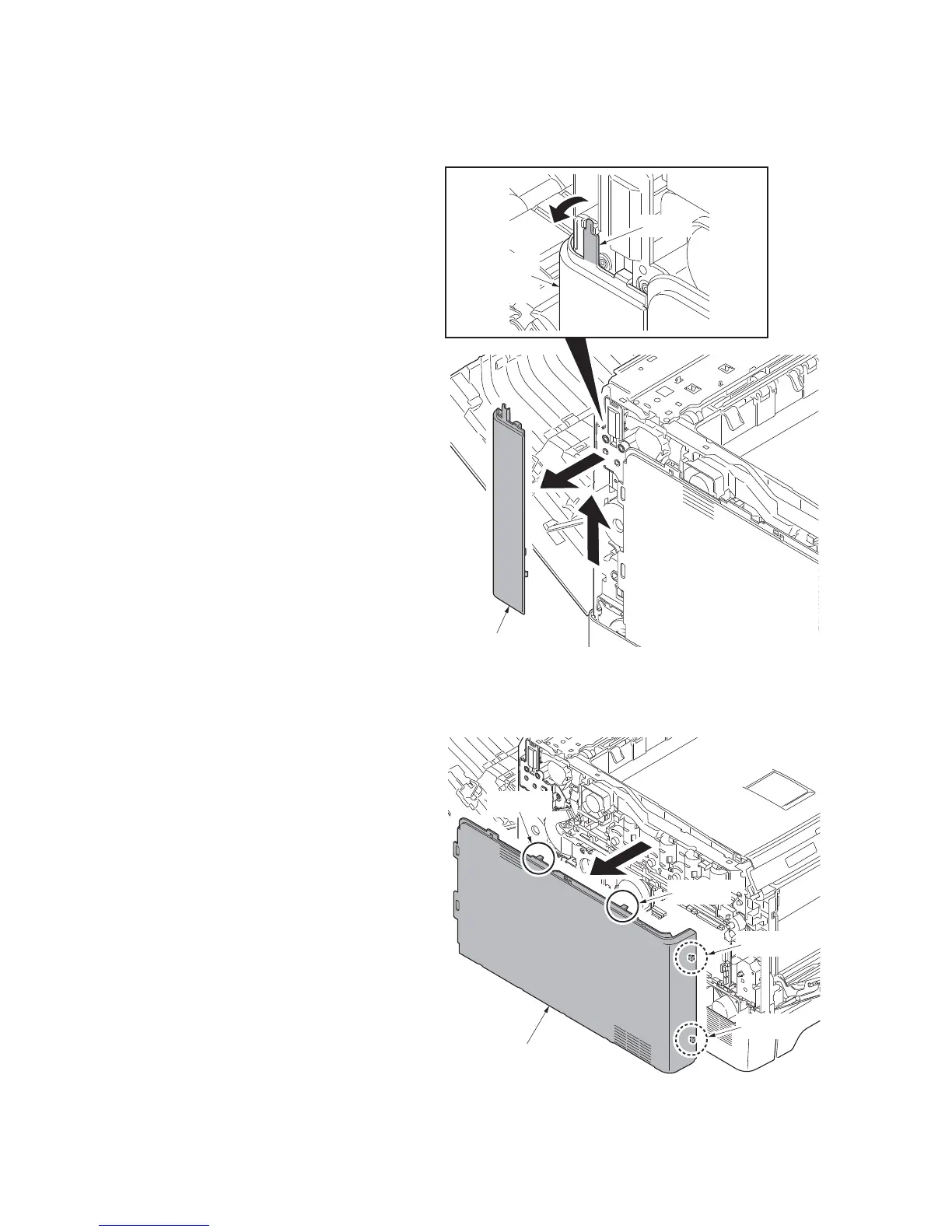

Figure 1-5-12
3. Release four hooks (hook A → B) and
then remove the left cover.
Figure 1-5-13
Left rear cover
Hook
Left rear
cover
Left cover
Hook B
Hook B
Hook A
Hook A
