Kyocera FS-C5150DN Service Manual

2KT/2KV
1-4-32

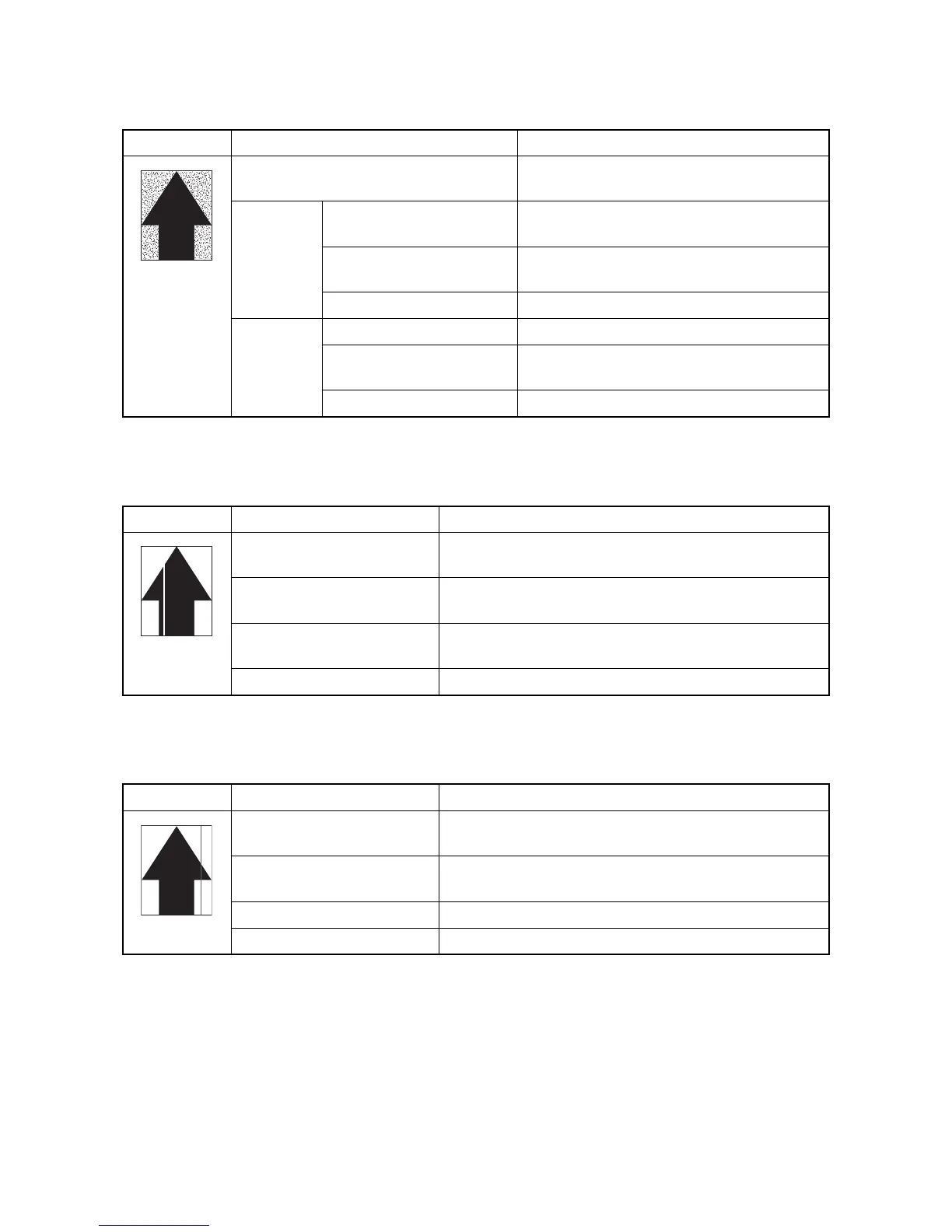

(6) The background is colored.
(7) White streaks are printed vertically.
(8) Black streaks are printed vertically.
Print example Causes Check procedures/corrective measures
Defective color calibration. Perform the color calibration (Refer to opera-
tion guide).
Defective
developing
bias output.
Defective developing unit. Replace the developing unit for the color that
causes an error (see page 1-5-18).
Defective high voltage
PWB.
Replace the high voltage PWB
(see page 1-5-34).
Defective engine PWB. Replace the engine PWB (see page 1-5-26).
Defective
drum sur-
face charg-
ing.
Defective drum unit. Replace the drum unit (see page 1-5-20).
Defective high voltage
PWB.
Replace the high voltage PWB
(see page 1-5-34).
Defective engine PWB. Replace the engine PWB (see page 1-5-26).
Print example Causes Check procedures/corrective measures
Foreign object in one of the
developing units.
Replace the developing unit for the color that causes an
error (see page 1-5-18).
Adhesion of soiling to transfer
belt.
Clean the transfer belt. Replace the intermediate transfer
unit if it is extremely dirty (see page 1-5-21).
Adhesion of soiling to transfer
roller.
Clean the transfer roller. Replace the transfer roller if it is
extremely dirty (see page 1-5-24).
Dirty LSU dust shield glass. Perform the LSU dust shield glass cleaning.
Print example Causes Check procedures/corrective measures
Dirty or flawed drum. Perform the drum surface refreshing (see page 1-3-13).
Flawed drum. Replace the drum unit (see page 1-5-20).
Deformed or worn cleaning
blade in the drum unit.
Replace the drum unit (see page 1-5-20).
Worn primary transfer belt. Replace the intermediate transfer unit (see page 1-5-21).
Defective transfer roller. Replace the transfer roller (see page 1-5-24).

Kyocera FS-C5150DN Specifications

General

Wi-Fi	No
Network ready	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	23 ppm
Maximum duty cycle	50000 pages per month
Number of print cartridges	4
Memory type	DDR
Memory slots	1
Processor model	PowerPC 464
Maximum internal memory	1280 MB
Sound power level (standby)	50 dB
Display	-
Total input capacity	250 sheets
Total output capacity	- sheets
Multi-Purpose tray input capacity	50 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Photo paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Letterhead, Recycled paper
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	2
Mac operating systems supported	Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	- W

Weight and Dimensions

Dimensions (WxDxH)	391 x 523 x 371 mm
