Kyocera FS-C5150DN

To Next Page

To Previous Page

2KT/2KV

1-5-33

14. Remove three screws and then remove

the main PWB.

15. Check or replace the main PWB and

refit all the removed parts.

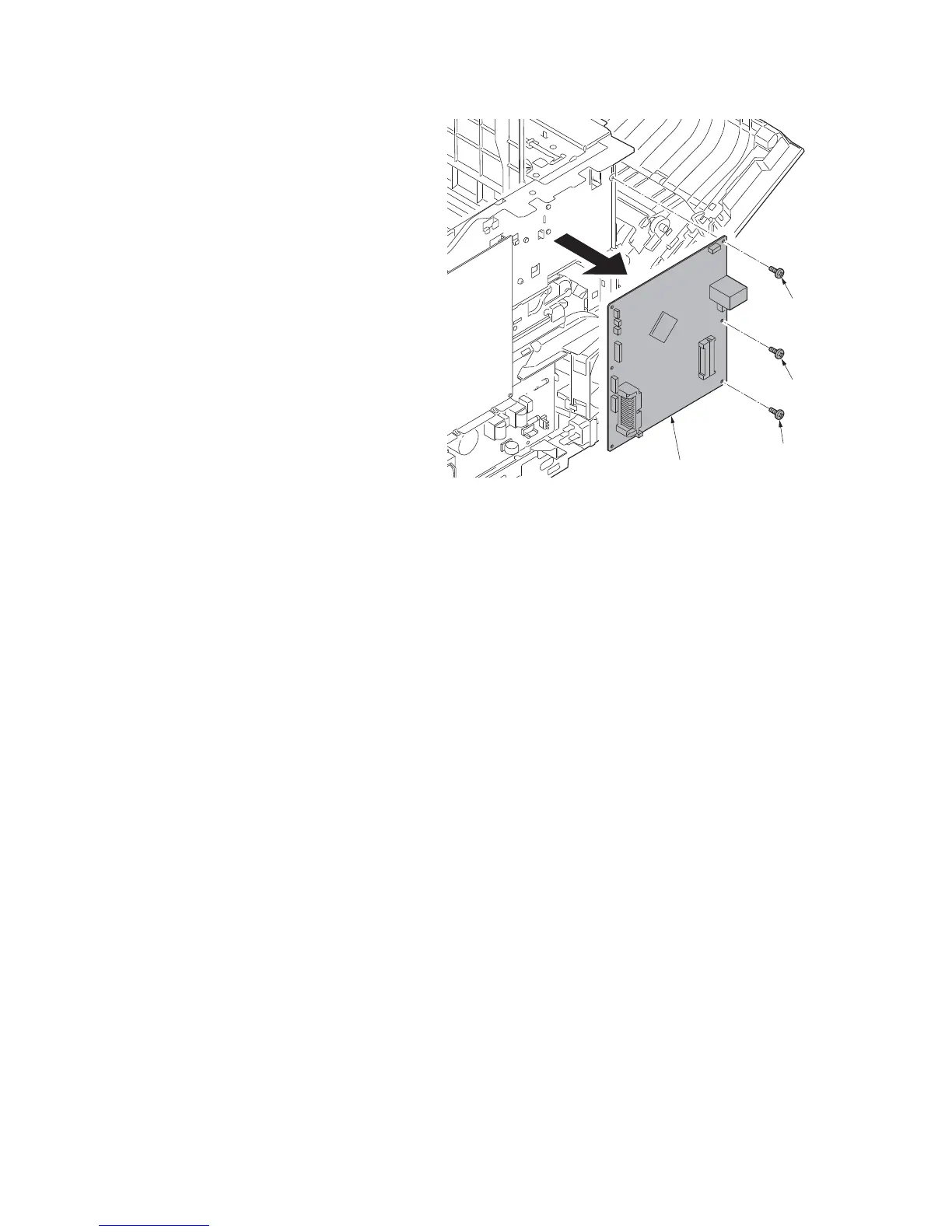

Figure 1-5-49

Main PWB

Screw
