Kyocera FS-C5150DN Service Manual

2KT/2KV
1-2-3
220-240V AC model

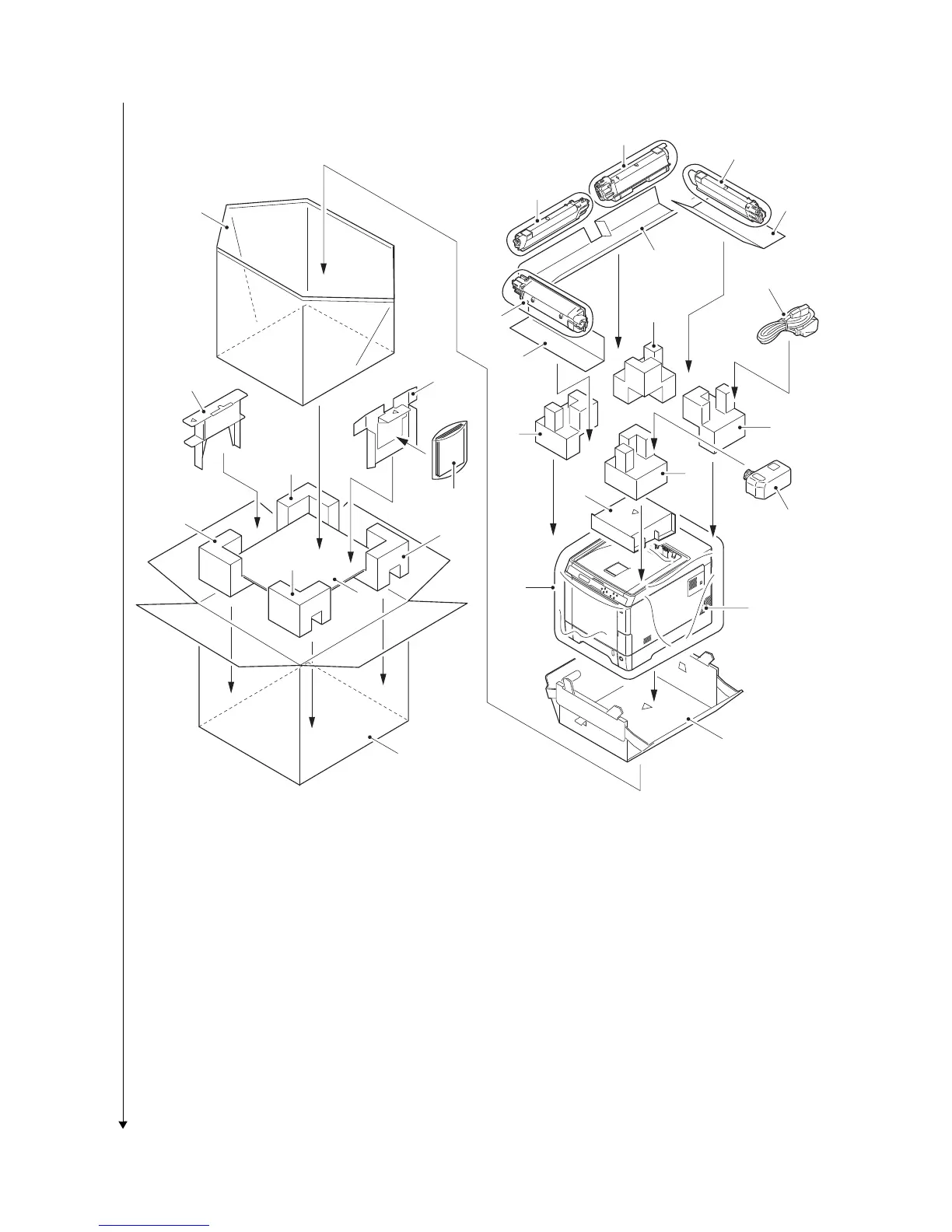

Figure 1-2-3
Place the machine on a level surface.
1
8
13
11
14
9
6
7
25
27
26
18
19
22
24
16
4
15
17
12
2
20
23
21
3
5
10
1. Machine
2. Plastic bag
3. Bottom spacer
4. Machine cover
5. Outer case
6. Bottom front right pad
7. Bottom front left pad
8. Bottom back right pad
9. Bottom back left pad
10. Bottom pad
11. Top front right pad
12. Top front left pad
13. Top back right pad
14. Top back left pad
15. Top spacer
16. Toner container K
17. Toner container M
18. Toner container C
19. Toner container Y
20. Front container spacer
21. Left container spacer
22. Back container spacer
23. Waste toner box
24. Power cord
25. Left spacer
26. Right spacer
27. Operation guide etc.

Kyocera FS-C5150DN Specifications

General

Wi-Fi	No
Network ready	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	23 ppm
Maximum duty cycle	50000 pages per month
Number of print cartridges	4
Memory type	DDR
Memory slots	1
Processor model	PowerPC 464
Maximum internal memory	1280 MB
Sound power level (standby)	50 dB
Display	-
Total input capacity	250 sheets
Total output capacity	- sheets
Multi-Purpose tray input capacity	50 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Photo paper, Pre-Printed, Recycled paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Letterhead, Recycled paper
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	2
Mac operating systems supported	Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	- W

Weight and Dimensions

Dimensions (WxDxH)	391 x 523 x 371 mm
