Kyocera KM-C3232E Service Manual

2JL/2JJ/2JG/2JD
1-5-37

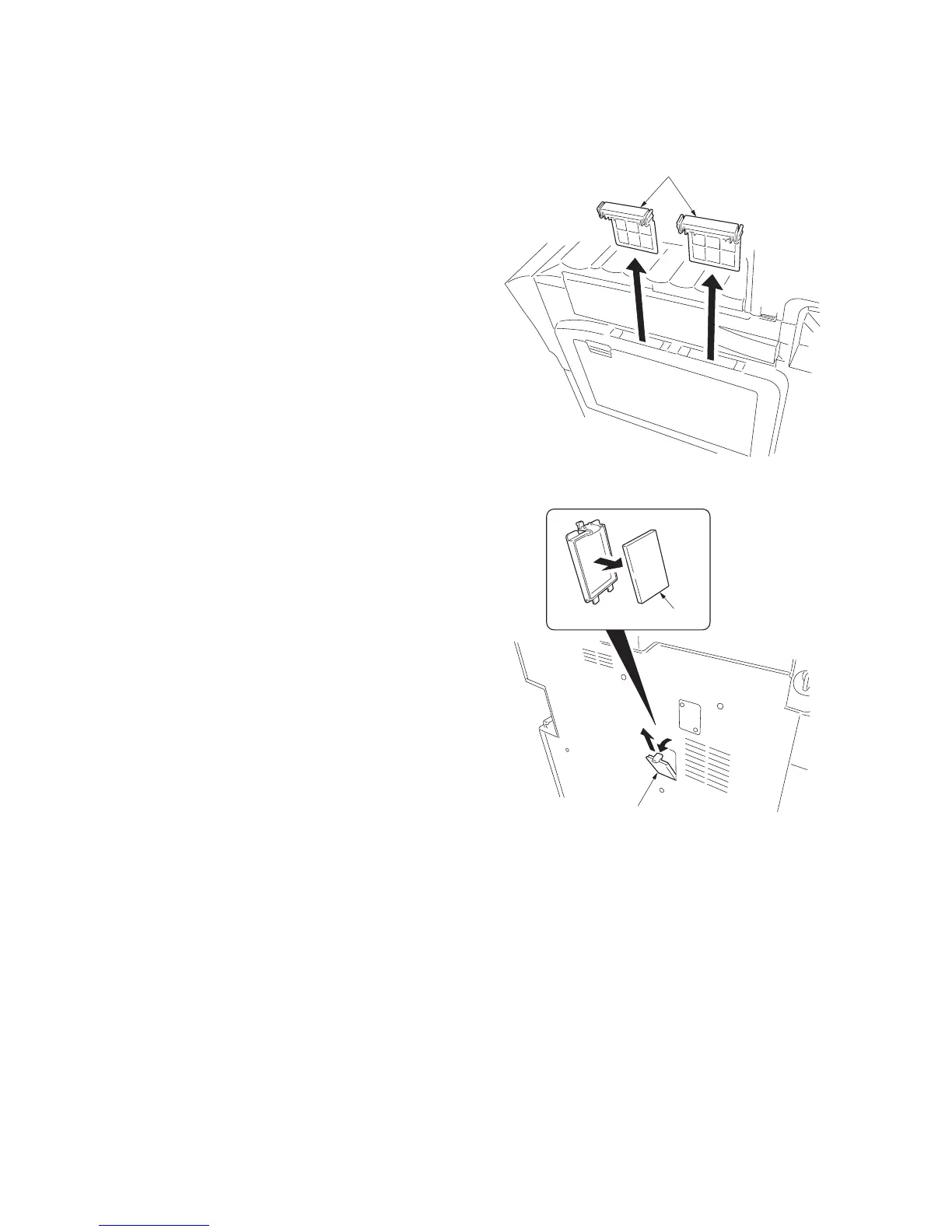

(4) Detaching and refitting the right filter and rear filter
Follow the procedure below to replace the right and rear filters.
Procedure
1. Remove two right filters.
2. Replace two right filters and install the fil-
ters.
Figure 1-5-81
3. Remove the filter cover.
4. Remove the rear filter from the filter cover.
5. Replace the rear filter and install the filter.
Figure 1-5-82
Right filters
Filter cover
Rear filter
