2JL/2JJ/2JG/2JD
2-1-3
(2) MP tray paper feed section
Pressing the Start key activates the MP solenoid (MPSOL) to release the paper stopper, which in turn causes the MP for-
warding pulley mounted on the MP support to descend. In turn, the MP forwarding pulley comes in contact with the paper
placed on the MP tray is fed forward as the MP forward pulley rotates and forwarded to the MP feed pulley and the MP
separation pulley. Also during paper feed, the MP separation pulley prevents multiple sheets from being fed at one time by
the torque limiter.

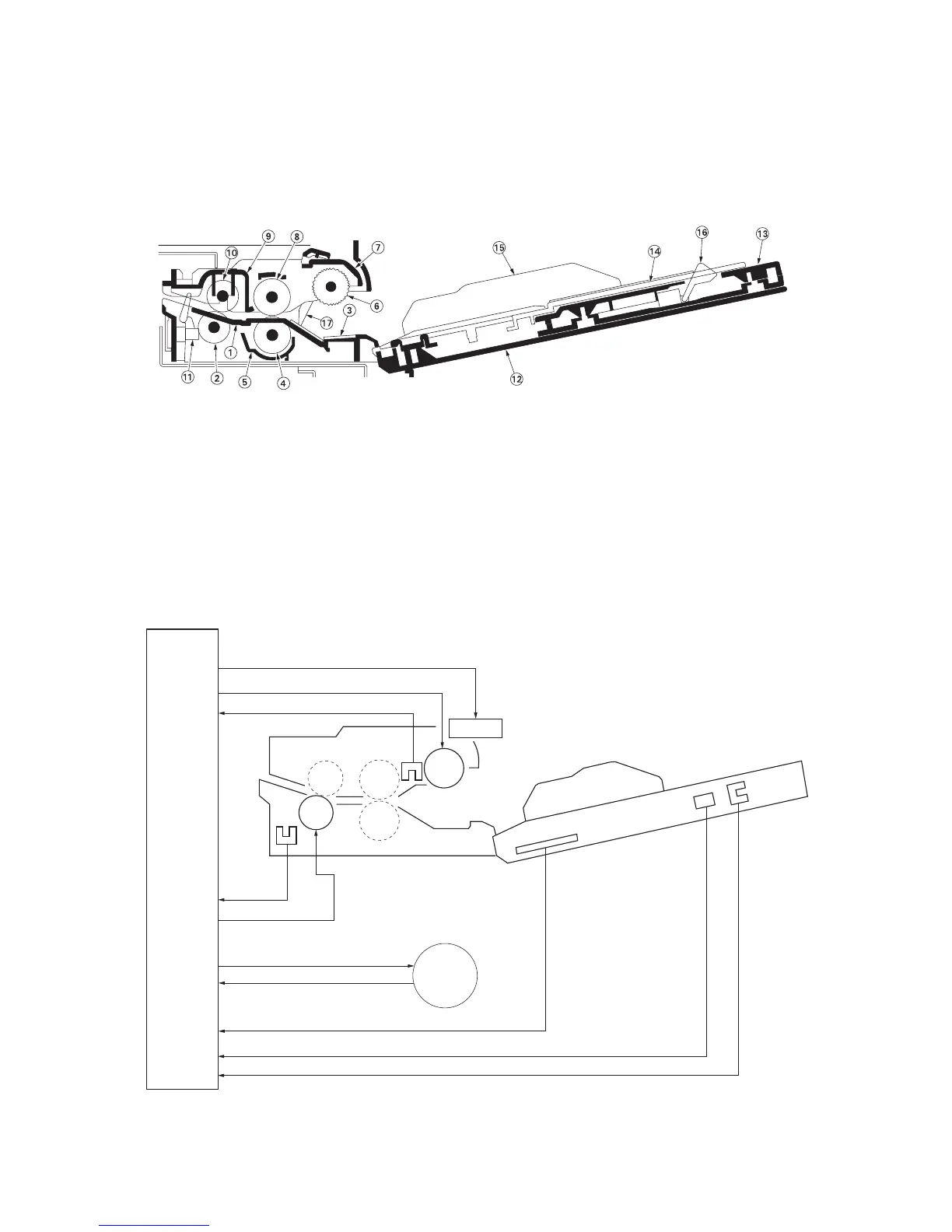

Figure 2-1-3 MP tray paper feed section (1)
Figure 2-1-4 MP tray paper feed section block diagram (1)
(1) MPT lower guide
(2) Middle roller
(3) Bypass friction plate
(4) MP separate pulley
(5) Separate pulley holder
(6) MP forwarding pulley
(7) MPT LF holder
(8) MP feed pulley
(9) MPT base
(10) MIddle pulley
(11) MP paper feed switch (MPPFSW)
(12) Bypass table A
(13) Bypass table B
(14) Bypass table C
(15) Slider
(16) MP paper length size switch (MPPLSW)
(17) Paper stopper
MPF TABLE
MPF LENGTH
MPPLSW
MPTSW
MPPWSW
MPF_WIDTH1
MPF_WIDTH3
MPF_WIDTH2
MPF FED CLT REM
MPF JAM1
MPF PPR SET
MPF CLT REM
MPF SOL2 DR
MPF SOL1 DR
MPPFCL
MPPCCL
MPPSSW
MPPFSW
MP tray
EPWB
YC24-A2
YC24-A11
YC24-B8
YC24-B6
YC24-B5
YC24-B10
YC24-B2
YC24-A3
YC24-A4
YC24-A6
YC24-A8
YC26-13
YC26-14
YC26-15
YC26-16
MPSOL
DLP COL MOT DR
DLP COL MOT DIR
DLP COL MOT RDY
DLP COL MOT CLK
MPM
