Kyocera KM-C3232E Service Manual

2JL/2JJ/2JG/2JD
2-1-4

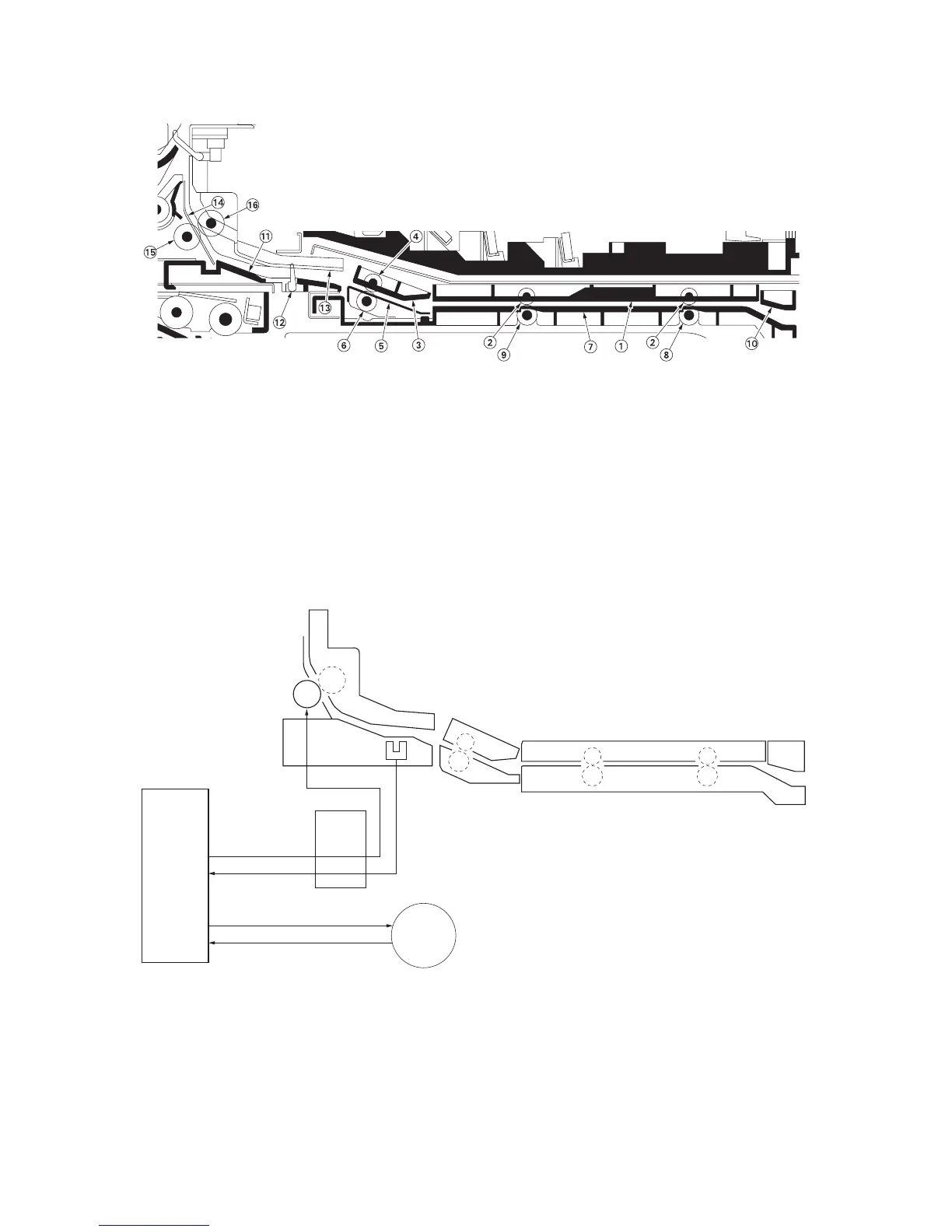

Figure 2-1-5 MP tray paper feed section (2)
Figure 2-1-6 MP tray paper feed section block diagram (2)
(1) MPT bypass cover
(2) MPT bypass pulley
(3) Bypass OUT cover
(4) Bypass OUT pulley
(5) Bypass right guide
(6) Bypass B roller
(7) MPT bypass base
(8) Bypass C roller
(9) Bypass A roller
(10) Bypass IN guide
(11) Middle low guide
(12) MP paper conveying switch
(MPPCSW)
(13) Feed R guide
(14) Middle bypass guide
(15) Middle bypass roller
(16) Middle pulley
MPPCSW
PCCL
FPWB
MPF JAM3
ROL_CLT_REM
EPWB
YC22-B18
YC22-A7
YC26-5
YC26-6
YC26-7
YC26-8
MPF MOT DR
MPF MOT DIR
MPF MOT RDY
MPF MOT CLK
MPM
