2T6/2T7/2T8/2T9-3
1-5-23
8. Pull two connectors out.
9. Remove the screw and two hooks and
then remove the wire guide.

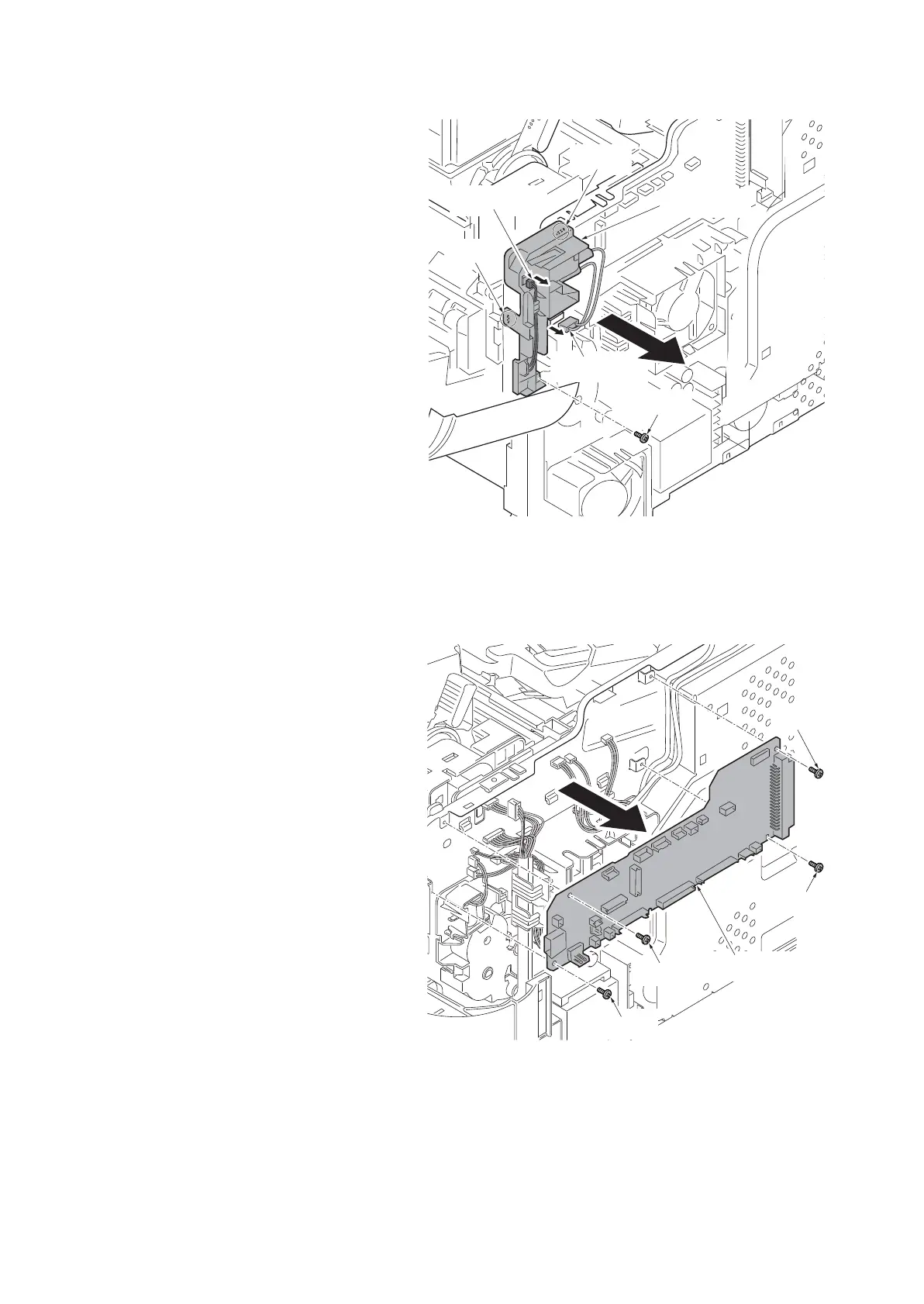

Figure 1-5-35
10. Pull all connectors out from main PWB.
11. Remove four screws and then remove
the engine PWB.
12. Check or replace the engine PWB and
refit all the removed parts.
NOTE: When replacing the PWB, remove the
EEPROM from the PWB and then reattach it to
the new PWB.
Figure 1-5-36
Hook
Connector
Connector
Wire guide
Hook
Screw
Engine PWB
Screw
Screw
Screw
Screw
