(2) Detaching and refitting the paper feed driving motor unit
Procedure
1. Remove the right upper cover.
(See page 1-5-4)
2. Remove the right lower cover.
(See page 1-5-4)
3. Pull the connectors of clutches and
solenoid out.
4. Remove three screws and then remove
the paper feed driving motor unit.
5. Check or replace the paper feed driving
motor unit and refit all the removed
parts.

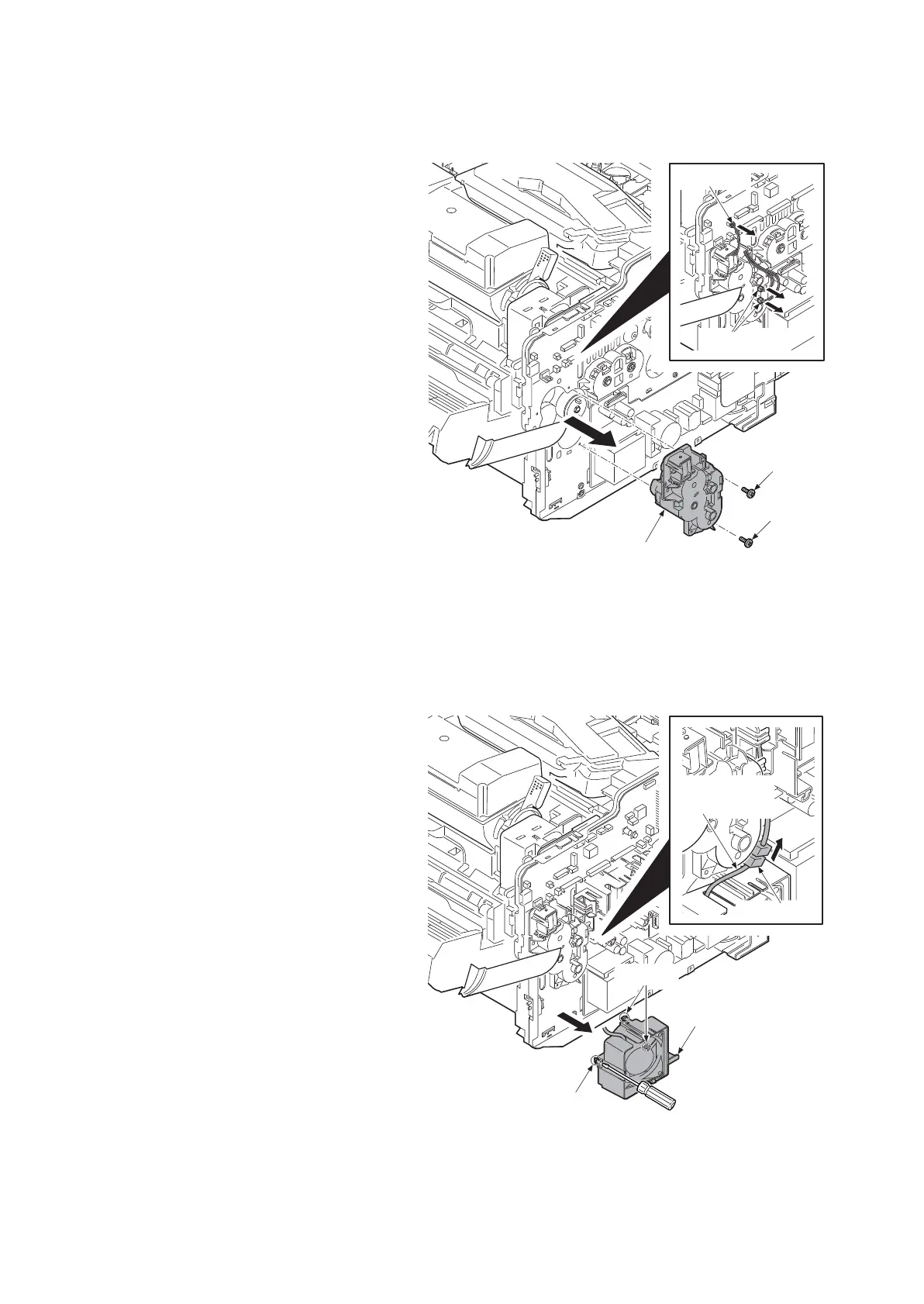

Figure 1-5-49
(3) Detaching and refitting the power source fan motor
Procedure
1. Remove the right upper cover.
(See page 1-5-4)
2. Remove the right lower cover.
(See page 1-5-4)
3. Pull the connector of the power source
fan motor wire out.
4. Release three hooks using flat-blade
screwdriver and then remove the power
source fan motor assembly.
5. Check or replace the power source fan
motor and refit all the removed parts.
Figure 1-5-50
Connector
Connectors
Paper feed
driving motor unit
Screw
Screw
Hook
Hooks
Connector
Power source fan
motor assembly
Power source
fan motor wire
