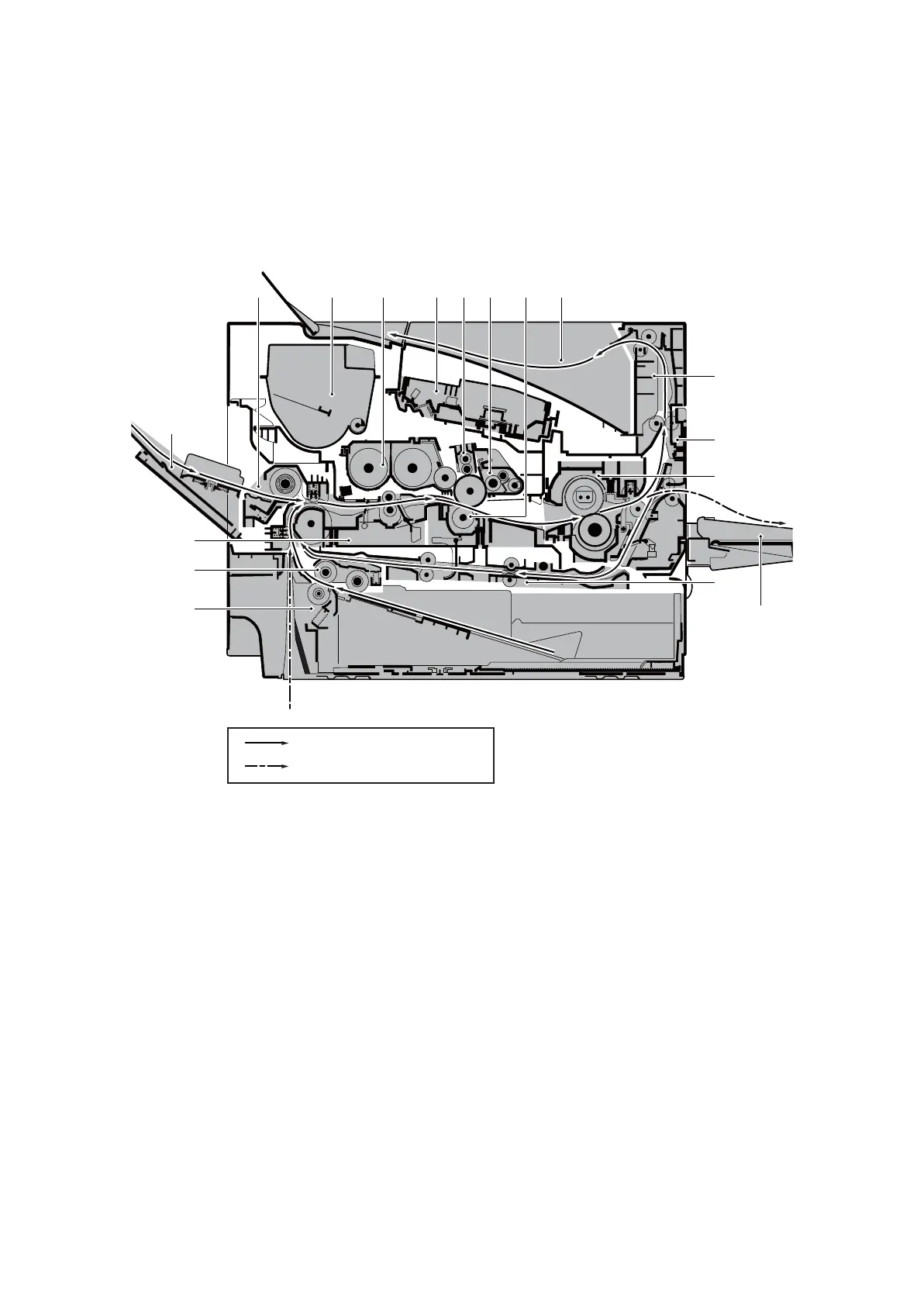

1-1-3 Machine cross section
(1) 60/55/50 ppm model
Figure 1-1-6
Paper path
Paper path (Option)
10 11
17
96 128
13
15
2
1
16
3
14
7
4
5
1. Cassette
2. Cassette paper feed section
3. Paper feed conveying section
4. MP tray
5. MP tray paper feed section
6. Toner container
7. Developer unit
8. Laser scanner unit (LSU)
9. Charger roller unit
10. Drum unit
11. Transfer/Separation section
12. Eject tray (facedown)
13. Eject section
14. Eject conveying section
15. Fuser unit
16. Duplex conveyning section
17. Faceup tray (option)
