3S3
1-4-2
1-4-2 Assembly and disassembly
(1) Removing the bulk paper feeder from the printer
Warning: Before removing the bulk paper feeder, turn printer power off.
1. To remove the bulk paper feeder from the
printer, slide it away from the printer’s opera-
tion panel on the rail.
2. Then slowly and carefully raise the printer
from the bulk paper feeder. This also disen-
gages the connectors on the bulk paper
feeder and the one in the base of the printer.

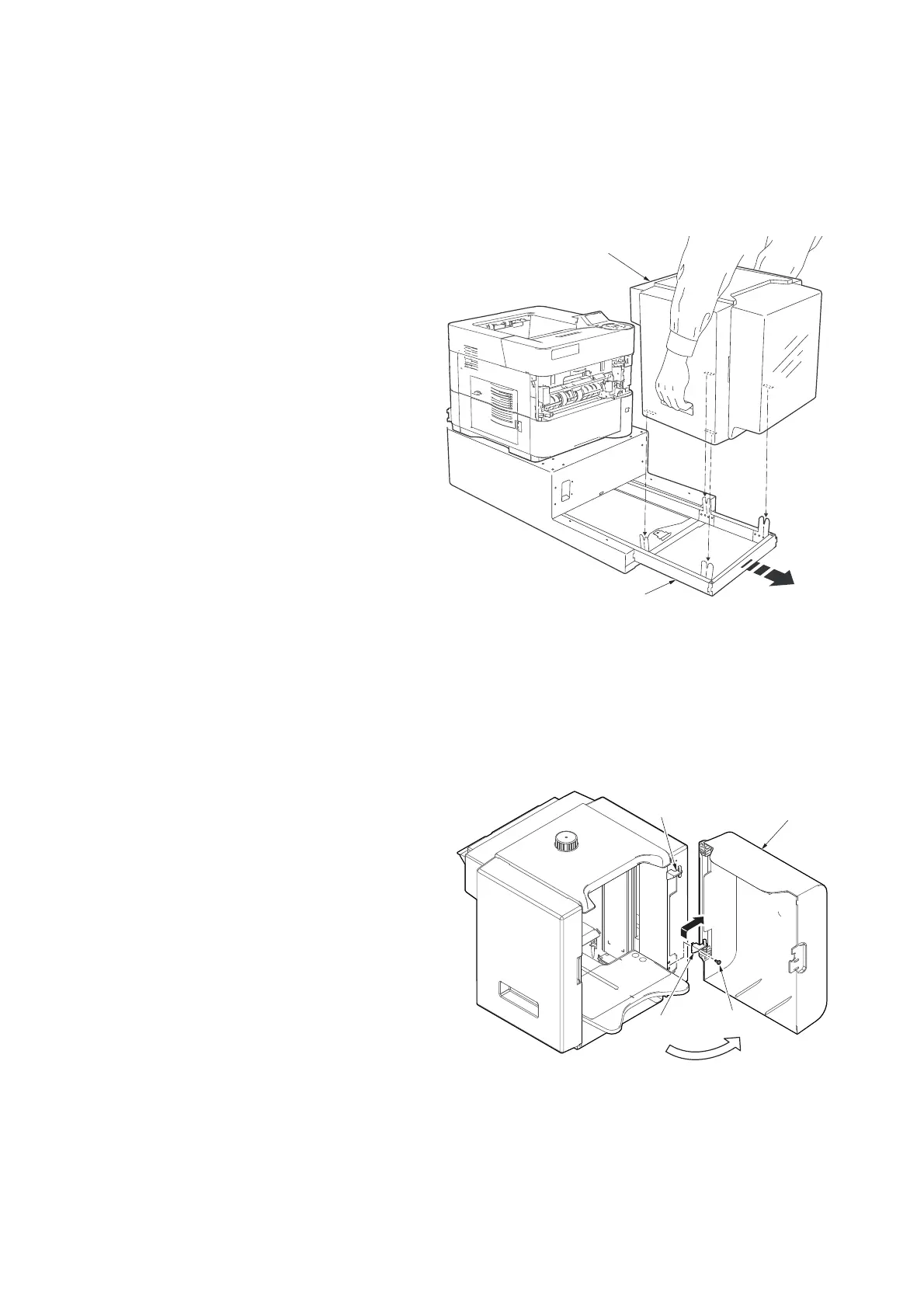

Figure 1-4-1
(2) Removing the tray cover
Note: The tray cover tends to self-open when the bulk paper feeder is put sideways or upside-down for service.
Tape the tray cover to the bulk paper feeder to avoid this situation or remove the tray cover in prior to making service fol-
lowing the manner described below.
1. The tray cover is secured to the bulk paper
feeder by hinges at the top and bottom.
2. Remove the screw and remove the bottom
hinge.
3. Lift up the tray cover from the top hinge and
remove it.
Figure 1-4-2
Slide away
Bulk paper feeder
Mount rail
Tray cover
Top hinge
Bottom hinge
Screw
To Next Page
